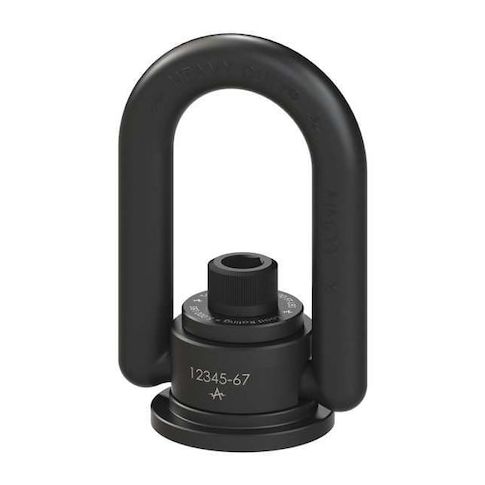

Hoist Ring, 1 1/4"-7 Thread, 24, 000 lb MPN:36650
Hoist Ring, 1 1/4"-7 Thread, 24, 000 lb
The ADB Hoist Ring is a heavy-duty lifting solution designed for rugged use. Featuring a pivot and swivel movement, this alloy steel ring provides 180 degrees of pivot and 360 degrees of swivel, allowing for versatile lifting and pulling applications. With a working load limit of 24,000 pounds, it's suitable for demanding tasks. The ring's weld-on design and removable bolt ensure secure installation and easy maintenance. Ideal for industries such as construction, manufacturing, and logistics, the ADB Hoist Ring offers reliable and efficient lifting solutions for heavy equipment and materials.
Top product features:
- Pivot Angle 180 Degrees
- Swivel Angle 360 Degrees
- Working Load Limit 24,000 lb
Top product applications:
- Construction Hoist
- Material Handling Equipment
- Heavy-Duty Lifting
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Weld-On, Working Load Limit 24,000 lb, Thread Size 1 1/4 In.-7, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 2 1/4 in, Bail Inside Length 3 3/4 in, Bail Inside Width 4 1/4 in, Bail Thickness 1 1/4 in, Overall Length 6 3/4 in, Overall Width 6 3/4 in, Hardware Included Removable Bolt, Minimum Installation Torque 800 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.10
- Package Width: 7.00
- Package Height: 4.50
- Package Weight: 18.30
Product info last updated on February 7, 2026 4:42pm UTC
Category: Lifting, Pulling and Positioning
