Hoist Ring, Bolt-On, 7/8-20in, 160 ft.-lb. MPN:EN33104
Hoist Ring, Bolt-On, 7/8-20in, 160 ft.-lb.

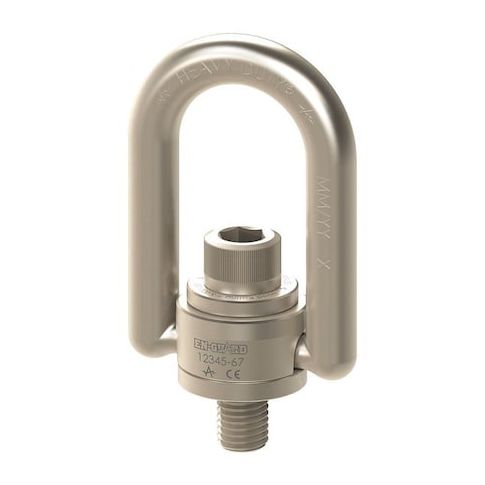

The ADB Hoist Ring is a heavy-duty, bolt-on lifting solution designed for demanding applications. With a working load limit of 8,000 lbs and a swivel angle of 360 degrees, it provides effortless rotation and versatility in lifting, pulling, and pivoting operations. The ring's alloy steel construction ensures durability and resistance to wear and tear. Suitable for use in a variety of industries, including manufacturing, construction, and shipping, this hoist ring is ideal for applications where heavy loads need to be moved with precision and control. Its nickel finish provides a corrosion-resistant surface for optimal performance.
Top product features:
- Pivot movement allows for 180 degrees of rotation
- Swivel movement allows for 360 degrees of rotation
- Removable bolt allows for easy installation and removal
Top product applications:
- Heavy duty lifting and rigging in construction and industrial settings
- Marine and boat lifting and securing
- Material handling in warehouses and manufacturing facilities
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 8,000 lb, Thread Size 7/8 In.-9, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 1 in, Bail Inside Length 3 3/8 in, Bail Inside Width 2 3/4 in, Bail Thickness 1 in, Overall Length 5 1/8 in, Overall Width 5 1/8 in, Hardware Included Removable Bolt, Minimum Installation Torque 160 ft-lb, Finish Nickel
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.50
- Package Width: 5.50
- Package Height: 3.00
- Package Weight: 7.55
Product info last updated on February 13, 2026 8:55pm UTC
Category: Lifting, Pulling and Positioning
