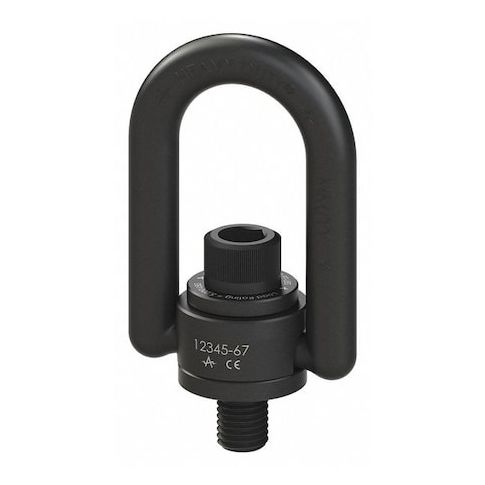

Hoist Ring, 10-1-1/2in, 16 ft.-lb, HDHRM MPN:34312
Hoist Ring, 10-1-1/2in, 16 ft.-lb, HDHRM
The ADB Hoist Ring is a heavy-duty, high-performance lifting solution designed for demanding applications. With a working load limit of 990 lb and a pivot angle of 180 degrees, this ring provides secure and controlled movement in lifting and pulling operations. Its swivel angle of 360 degrees ensures smooth and effortless rotation, making it ideal for use in a variety of industries, including construction, manufacturing, and logistics. The ring's durable alloy steel construction and black oxide finish ensure long-lasting reliability and corrosion resistance, making it a valuable addition to any heavy lifting or pulling operation.
Top product features:
- Pivot movement allows for 180 degrees of rotation
- Swivel movement allows for 360 degrees of rotation
- Removable bolt hardware allows for easy installation and removal
Top product applications:
- Lifting heavy machinery or equipment in a manufacturing or construction setting
- Pulling or moving heavy loads along a fixed path in a warehouse or factory
- Securing and lifting heavy pipes or ductwork in a plumbing or HVAC installation
Hoist Ring, Movement Type Pivot, Swivel, Material Alloy Steel, Mount Type Screw-On, Working Load Limit 990 lb, Thread Size M10-1.50, Operation Lifting, Pulling, Pivot Angle 180 Degrees , Swivel Angle 360 Degrees , Usable Thread Length 5/8 in, Bail Inside Length 1 3/8 in, Bail Inside Width 1 1/4 in, Bail Thickness 7/16 in, Overall Length 2 1/4 in, Overall Width 2 1/4 in, Hardware Included Removable Bolt, Minimum Installation Torque 11.8 ft-lb, Finish Black Oxide
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 2.50
- Package Height: 2.00
- Package Weight: 0.59
Product info last updated on February 26, 2026 10:02pm UTC
Category: Lifting, Pulling and Positioning
