Sealing Washer, Fits Bolt Size 5/8 in Steel/Buna-N, Cadmium-Plated Finish MPN:9500-10

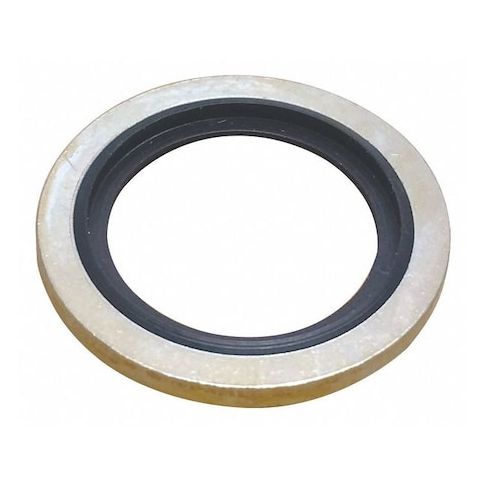

Sealing Washer, Fits Bolt Size 5/8 in Steel/Buna-N, Cadmium-Plated Finish
This metal bonded sealing washer is designed for applications requiring a reliable seal in harsh environments. With a cadmium-plated finish and Buna-N seal material, it provides excellent resistance to corrosion and temperature fluctuations. Suitable for use with 5/8 inch screws, it can withstand temperatures from -40 to 250 degrees Fahrenheit. This sealing washer is ideal for use in industrial settings, such as machinery and equipment manufacturing, as well as in the aerospace and automotive industries. Its compact size and easy installation make it a convenient solution for a variety of applications.
Top product features:
- Seals against leaks and corrosion due to its cadmium-plated finish.
- Provides a metal-to-metal seal with a bonded steel construction.
- Features a Buna-N seal material that withstands temperatures from -40 to 250 degrees Fahrenheit.
Top product applications:
- Sealing bolts in high-temperature applications
- Sealing bolts in extreme cold temperatures
- Sealing bolts in industrial machinery and equipment
Bonded Sealing Washer, Sealing Washer Type Metal Bonded Washer, Finish Cadmium-Plated, Metal Material Steel, Material Grade/Class Not Applicable, For Screw Size 5/8 in, Inside Diameter 0.93 in, Outside Diameter 1 17/64 in, Maximum Thickness 7/64 in, Seal Material Buna-N, System of Measurement Inch, Pack Size Small Pack, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Minimum Thickness 3/32 in, Seal Material Color Gold/Silver, Thickness Tolerance +/-0.15 in
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 1.40
- Package Height: 0.20
- Package Weight: 0.02
Product info last updated on January 23, 2026 10:59pm UTC
Category: Washers
