Low Voltage Distribution Transformer, 75 kVA, 3 Phase, 480V AC to 120/240V, NEMA 3R MPN:T3075K0023B

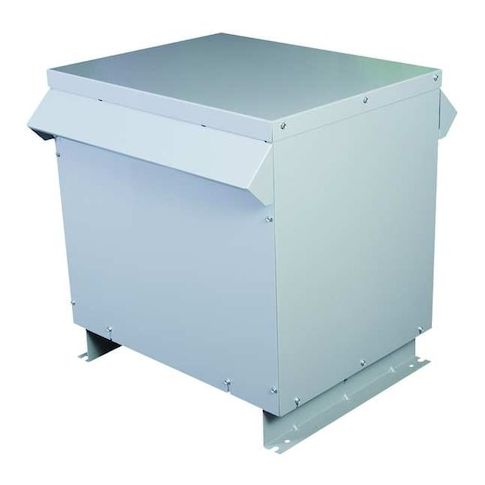

The ACME ELECTRIC T3075K0023B is a 75 kVA low voltage distribution transformer designed for 3 phase, 60 Hz step-down power applications. It converts 480V AC input to 120/240V output and features aluminum windings housed in a ventilated steel enclosure. Built for outdoor installation, this floor-mounted unit includes a weathershield and carries NEMA 3R and IP14 enclosure ratings. The transformer is finished in gray powder polyurethane paint and is suited for commercial and industrial power distribution where reliable voltage conversion is required.

Key Features:

• - 75 kVA low voltage distribution transformer for commercial and industrial power distribution applications.
• - 3 phase, 60 Hz operation with step-down functionality from 480V AC input to 120/240V output.
• - Primary voltage rated at 480D V.
• - Aluminum windings help provide dependable transformer performance.
• - Ventilated steel enclosure supports heat dissipation during operation.
• - Outdoor-rated design with NEMA 3R and IP14 enclosure ratings.
• - Includes weathershield for added protection in outdoor environments.
• - Floor-mounted configuration for permanent installation.
• - Gray powder polyurethane paint finish for durability.
• - 150°C temperature rise with 220°C UL insulation class.
• - Sound level rated at 50 dB.
• - Tap configuration includes ANFC taps: 2, BNFC taps: 4, with 0.025 tap step.
• - Overall dimensions: 29.41 in. H x 28.15 in. W x 22.37 in. D.
• - Meets CSA C22.2 No. 47, UL 1561, and U.S. DOE 10 CFR Part 431 requirements.
