Low Voltage Distribution Transformer, 112.5 kVA, 3 Phase, 480V AC to 120/240V, NEMA 3R MPN:T3112K0023B

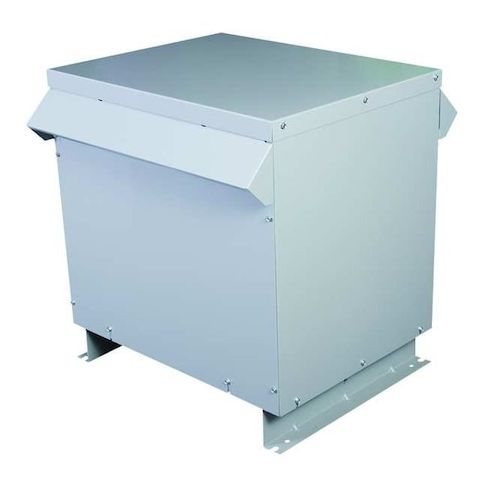

• The ACME ELECTRIC T3112K0023B is a 112.5 kVA low voltage distribution transformer designed for 3-phase, 60 Hz step-down power applications. It converts 480V AC input to 120/240V output and is built for outdoor use with a ventilated, floor-mounted steel enclosure. Finished in gray powder polyurethane paint and equipped with a weathershield, this transformer is suited for commercial and industrial installations requiring durable, weather-resistant power distribution performance.

  Key Features:

  • - 112.5 kVA low voltage distribution transformer for commercial and industrial power distribution applications.
  • - 3-phase, 60 Hz operation for compatibility with standard three-phase electrical systems.
  • - Step-down transformer design with 480V AC input and 120/240V output.
  • - Primary voltage rated at 480D V.
  • - Aluminum windings provide reliable electrical performance.
  • - Ventilated steel enclosure helps support heat dissipation during operation.
  • - Gray powder polyurethane paint finish offers added durability and corrosion resistance.
  • - NEMA 3R and IP14 enclosure ratings for outdoor-rated protection.
  • - Includes weathershield for added environmental protection in outdoor installations.
  • - Floor-mounted configuration for secure installation.
  • - 150°C temperature rise with 220°C insulation class.
  • - Sound level rated at 50 dB.
  • - ANFC taps: 2
  • BNFC taps: 4
  • tap step: 0.025.
  • - Overall dimensions: 35.47 in. H x 31.9 in. W x 26.88 in. D.
  • - Meets CSA C22.2 No. 47, UL 1561, and U.S. DOE 10 CFR Part 431 standards.
