Low Voltage Distribution Transformer, 150 kVA, 3 Phase, Step Down, 480V AC to 120/240V, NEMA 3R MPN:T3150K0023B

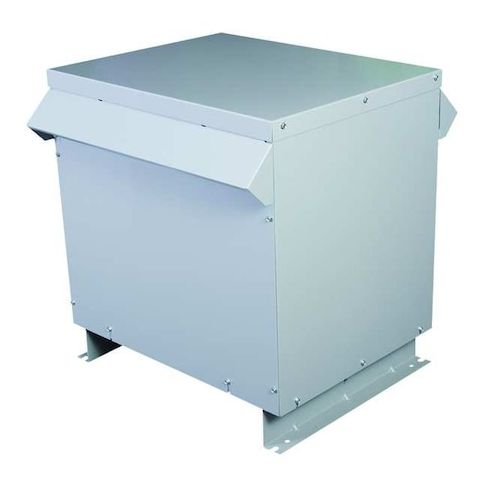

The ACME ELECTRIC T3150K0023B is a 150 kVA low voltage distribution transformer designed for 3-phase, 60 Hz power distribution applications. This step-down unit converts 480V AC input to 120/240V output and is built for outdoor installation with a ventilated steel enclosure, NEMA 3R and IP14 protection, and an included weathershield. Floor mounted and finished in gray powder polyurethane paint, it is well suited for commercial and industrial environments requiring reliable power distribution.

Key Features:

• - 150 kVA low voltage distribution transformer for commercial and industrial power distribution applications.
• - 3-phase, 60 Hz operation with step-down voltage conversion from 480V AC input to 120/240V output.
• - Primary voltage rated at 480D V.
• - Constructed with aluminum windings for dependable electrical performance.
• - Ventilated steel enclosure supports heat dissipation and durability.
• - Rated NEMA 3R and IP14 for outdoor use and includes a weathershield for added environmental protection.
• - Floor-mounted design for permanent installation.
• - Gray powder polyurethane paint finish helps protect the enclosure surface.
• - 150°C temperature rise with 220°C UL insulation class.
• - Sound level rated at 50 dB.
• - Tap configuration includes 2 ANFC taps, 4 BNFC taps, and 0.025 tap step.
• - Overall dimensions are 41.52 in H x 32.9 in W x 29.87 in D.
• - Meets CSA C22.2 No. 47, UL 1561, and U.S. DOE 10 CFR Part 431 standards.
