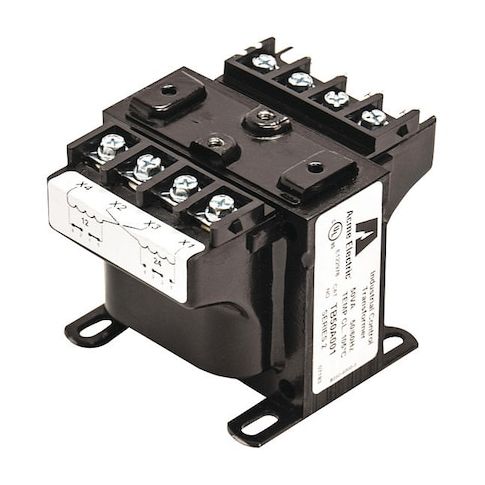

Control Transformer, 50 VA, 120V AC, 240/480V AC MPN:TB50N008F4
Free Shipping
In Stock
Acme Electric's TB Series Industrial Control Transformers are designed to provide reliable and efficient power conversion for industrial control systems. These dry-type, step-down transformers feature encapsulated windings and internal terminations, protecting against moisture and contaminants. With high-quality silicon steel laminations and integrally molded terminal blocks, they minimize core losses and prevent arc over. Ideal for applications such as machinery control, conveyor systems, and material handling, these transformers ensure maximum safety and efficiency. Their compact design and series-parallel connecting links also save wiring and labor costs, making them a cost-effective solution for industrial control systems.
Top product features:
- Encapsulated design protects the core and coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers prevent arc over.
Top product applications:
- Industrial Control Systems
- Motor Control Centers
- Power Distribution Units
ICT .050KVA 240X480-120 F4
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 7.00
- Package Height: 7.00
- Package Weight: 3.29
