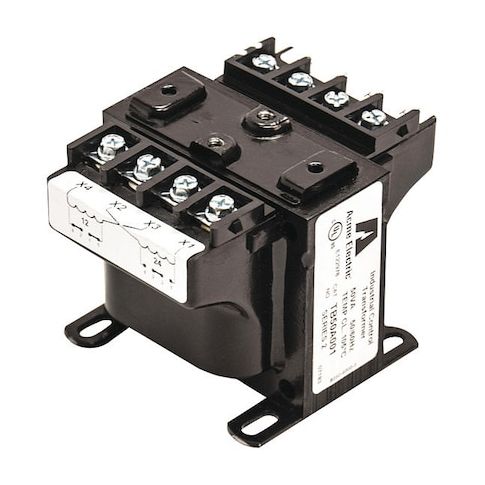

Control Transformer, 150 VA, 115V AC, 208/230/460V AC MPN:TB150N005F4
Free Shipping
In Stock
Acme Electric's TB Series Industrial Control Transformers are designed to handle momentary current inrush while maintaining stable secondary voltage. With an encapsulated design, high-quality silicon steel laminations, and integrally molded terminal blocks, these dry-type transformers ensure maximum safety and efficiency. Ideal for applications requiring high reliability and durability, such as industrial control systems, machine tools, and power distribution equipment. The transformers' compact size and series-parallel connecting links also save wiring and labor costs, making them a cost-effective solution for a wide range of industrial settings. Ships in 7 days with a minimum order quantity of 1 unit.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- Integrally molded terminal blocks with isolation barriers to prevent arc over
Top product applications:
- General Lighting
- Panel Boards and Switchgear
- Electrical Distribution Systems
ICT .150KVA 208,230,460 -115 F4
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.30
- Package Width: 3.75
- Package Height: 4.80
- Package Weight: 5.80
