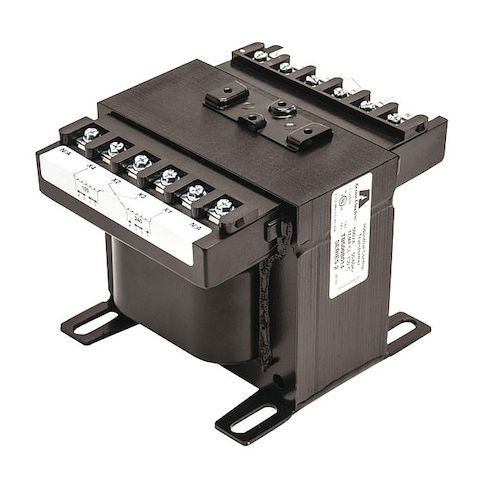

Control Transformer, 1.5 kVA, 120/240V AC, 240/480V AC MPN:TB1500N014F2
Free Shipping
In Stock
Acme's TB Series Industrial Control Transformers are designed to handle momentary current inrush and maintain secondary voltage stability. These dry-type, step-down transformers feature encapsulated windings and terminal blocks with isolation barriers, ensuring maximum safety and protection from contaminants. With high-quality silicon steel laminations, they minimize core losses and increase efficiency. Ideal for applications requiring precise control, such as industrial automation, robotics, and power distribution systems. Their compact design and series-parallel connecting links save wiring and labor costs, making them a reliable and cost-effective solution for a wide range of industries and applications.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers to prevent arc over.
Top product applications:
- Industrial Control Systems
- Emergency Lighting Systems
- Data Center Power Distribution Systems
ICT 1.5KVA 240X480 - 120X240 F2
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.50
- Package Width: 10.00
- Package Height: 9.50
- Package Weight: 37.00
