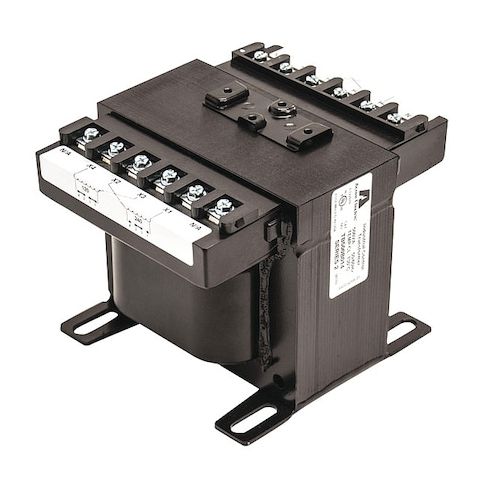

Control Transformer, 750 VA, 120/240V AC, 240/480V AC MPN:TB750N014F2
Free Shipping
In Stock
Acme Electric's TB Series Industrial Control Transformers are designed to handle the high inrush current of electromagnetic components without sacrificing secondary voltage stability. These dry-type, step-down transformers are built with high-quality silicon steel laminations to minimize core losses and increase efficiency. The encapsulated design protects the core and coil assembly from contaminants, and integrally molded terminal blocks with isolation barriers prevent arc over. Ideal for use in industrial settings, these transformers are perfect for applications such as motor control, lighting, and power distribution, offering a safe and reliable solution for a wide range of industrial control needs.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers to prevent arc over.
Top product applications:
- Industrial Control Systems
- Machine Controls and Automation
- Power Distribution and Substations
ICT .750KVA 240X480 - 120X240 F2
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.80
- Package Width: 9.90
- Package Height: 10.00
- Package Weight: 23.50
