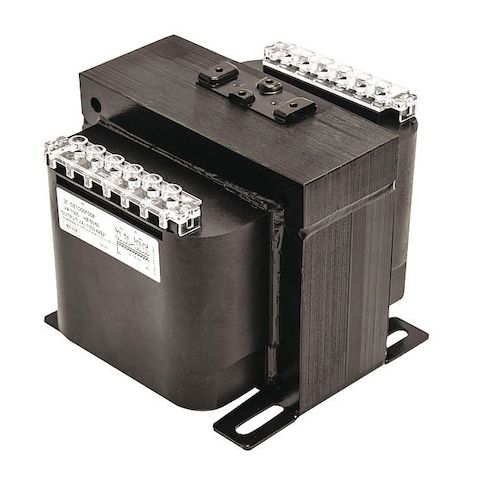

Control Transformer, 1 kVA, 115/230/24V AC, 208/230/400/460/575V AC MPN:CE1000N010
Free Shipping
In Stock
The Acme Electric TB Series Industrial Control Transformer is a reliable and efficient solution for various industrial applications. Designed to handle momentary current inrush, these transformers maintain secondary voltage stability while protecting against moisture, dirt, and other contaminants. With encapsulated windings and high-quality silicon steel lamination, they minimize core losses and increase efficiency. Suitable for use in control circuits, these transformers are UL and cUL listed, meeting or exceeding NEMA, ANSI, and OSHA standards. Perfect for applications such as machine control, power distribution, and motor control, they offer a 20-year limited warranty and are available for immediate shipment.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Copper windings on all groups.
Top product applications:
- Industrial control systems
- Electrical substations
- Power distribution systems
Industrial Control Transformer 120X240 Primary Volts -24 Secondary Volts
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
- • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- • Copper windings on all groups
- • 2
- • Voltage regulation exceeds NEMA requirements
- • UL, and cUL Listed
- • Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards
- • Twenty year limited warranty
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 12.70
- Package Width: 10.00
- Package Height: 9.80
- Package Weight: 40.35
