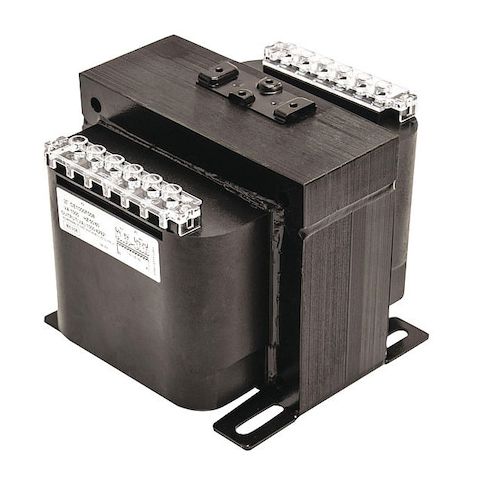

Control Transformer, 1.5 kVA, 115/230/24V AC, 208/230/400/460/575V AC MPN:CE1500N010
Free Shipping
In Stock
The Acme Electric TB Series Industrial Control Transformer is a reliable and efficient solution for a wide range of applications, including industrial control systems, power distribution, and equipment protection. Designed to withstand momentary current inrush and protect against ambient contaminants, these transformers ensure maximum safety and reliability. With a durable thermoplastic end cap and high-quality silicon steel lamination, they minimize core losses and increase efficiency. Suitable for use in harsh environments, they meet or exceed UL, CSA, NEMA, ANSI, and OSHA standards, and come with a 20-year limited warranty. Ideal for industries such as manufacturing, oil and gas, and utilities.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers to prevent arc over.
Top product applications:
- Power distribution systems in industrial settings
- Control panels and switchgear installations
- High-voltage electrical distribution systems
Industrial Control Transformer 208,230,460 Primary Volts -115 Secondary Volts
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
- • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- • Copper windings on all groups
- • 2
- • Voltage regulation exceeds NEMA requirements
- • UL, and cUL Listed
- • Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards
- • Twenty year limited warranty
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 6.00
- Package Width: 6.75
- Package Height: 7.75
- Package Weight: 45.40
