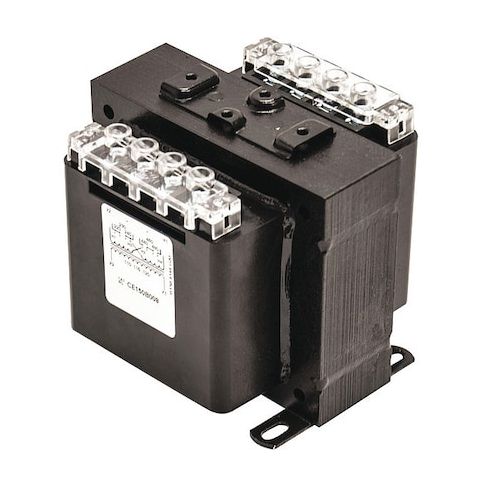

Control Transformer, 300 VA, 24V AC, 240/480V AC MPN:CE350N013
Free Shipping
In Stock
Acme Electric's TB Series Industrial Control Transformers are designed to handle momentary current inrush, maintaining secondary voltage stability and ensuring maximum safety. These dry-type, step-down transformers are ideal for use in industrial settings where electromagnetic components are energized, providing a reliable and efficient solution. With features such as encapsulated design, high-quality silicon steel lamination, and integrally molded terminal blocks, these transformers offer protection from contaminants and ease of installation. Suitable for applications including manufacturing, processing, and power distribution, they meet or exceed UL, CSA, NEMA, ANSI, and OSHA standards, providing a 20-year limited warranty.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Copper windings on all groups.
Top product applications:
- Industrial control systems
- Electrical power distribution systems
- Machine control and automation systems
Industrial Control Transformer 240X480 Primary Volts - 24 Secondary Volts
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
- • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- • Copper windings on all groups
- • 2
- • Voltage regulation exceeds NEMA requirements
- • UL, and cUL Listed
- • Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards
- • Twenty year limited warranty
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 4.50
- Package Height: 4.38
- Package Weight: 13.20
