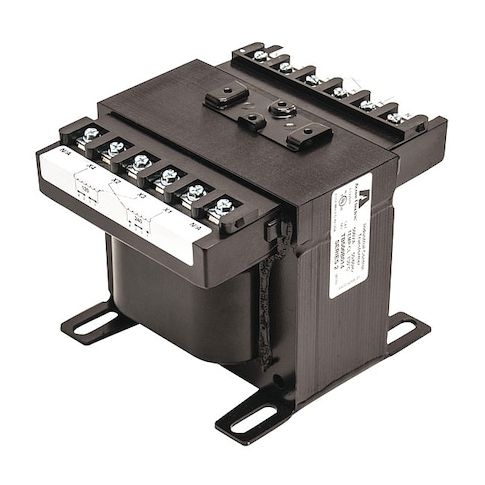

Control Transformer, 1.5 kVA, 100/120V AC, 240/480/600V AC MPN:TB1500N011F4
Free Shipping
In Stock
Acme Electric's TB Series Industrial Control Transformers are designed to withstand the high current inrush caused by electromagnetic component energization, ensuring stable secondary voltage without sacrificing performance. These dry-type, step-down transformers feature an encapsulated design that protects the core and coil assembly from contaminants, and are constructed with high-quality silicon steel laminations for increased efficiency. Ideal for applications such as machine control, motor control, and power distribution, these transformers offer maximum safety and reliability. They are also suitable for use in harsh environments and can be easily integrated into existing systems, making them a versatile solution for a wide range of industrial needs.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers to prevent arc over.
Top product applications:
- Motor control circuits
- Lighting systems
- Industrial control panels
ICT 1.5KVA 230,460,575 - 95,115 F4
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.67
- Package Width: 7.00
- Package Height: 7.45
- Package Weight: 44.20
