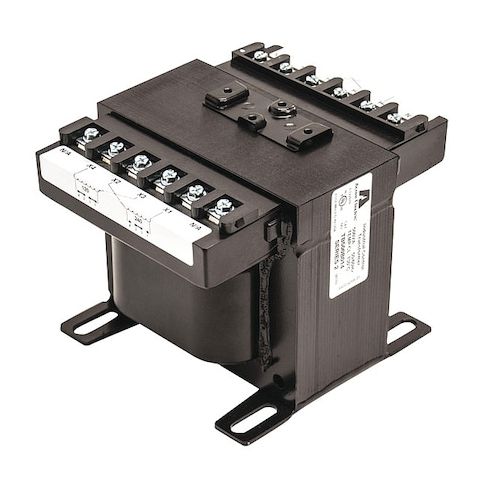

Control Transformer, 750 VA, 12/24V AC, 120/240V AC MPN:TB750N001F2
Free Shipping
In Stock
The Acme Electric TB Series Industrial Control Transformer is designed to handle momentary current inrush, ensuring stable secondary voltage without sacrificing performance. Its encapsulated design protects against contaminants, while high-quality silicon steel laminations minimize core losses for increased efficiency. Ideal for industrial applications, this transformer features integrally molded terminal blocks with isolation barriers, fuse block kits, and series-parallel connecting links to save wiring and labor costs. Suitable for use in control circuits, the TB Series meets or exceeds UL, CSA, NEMA, ANSI, and OSHA standards, and comes with a 20-year limited warranty.
Top product features:
- Encapsulated design protects core & coil assembly from potentially damaging contaminants.
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency.
- Integrally molded terminal blocks with isolation barriers to prevent arc over.
Top product applications:
- Industrial Motor Control
- Power Distribution Systems
- Factory Automation
Industrial Control Transformer 120X240 Primary Volts -12/24 Secondary Volts, Factory installed integrally mounted 2-pole primary block
Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety.
- • Encapsulated design protects core & coil assembly from potentially damaging contaminants
- • Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- • Integrally molded terminal blocks with isolation barriers to prevent arc over
- • Fuse blocks kits available and easily adaptable
- • Series-parallel connecting links save wiring and labor costs
- • Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- • Copper windings on all groups
- • 2
- • Voltage regulation exceeds NEMA requirements
- • UL, and cUL Listed
- • Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards
- • Twenty year limited warranty
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 70 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.95
- Package Width: 5.25
- Package Height: 6.95
- Package Weight: 26.50
