Low Voltage Distribution Transformer, 75 kVA, 3 Phase, 480V AC to 120/208V AC, NEMA 3R MPN:T3075K0013BSF
Free Shipping
In Stock
This 75 kVA Low Voltage Distribution Transformer from Acme Electric is designed for quiet operation, meeting NEMA standards for sound levels. The electrostatic shield provides enhanced protection against electrical interference. Suitable for a variety of applications, including commercial and industrial settings, this transformer is ideal for distributing power to multiple loads. Its compact size and durable construction make it a reliable choice for use in areas with limited space. With a lead time of 110 days and a minimum order quantity of 1, this transformer is a versatile solution for a range of power distribution needs.
Top product features:
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
- 120/208V AC and 480V AC output capabilities
Top product applications:
- Low Voltage Distribution Transformer
- Utility substations
- Commercial and industrial power distribution systems

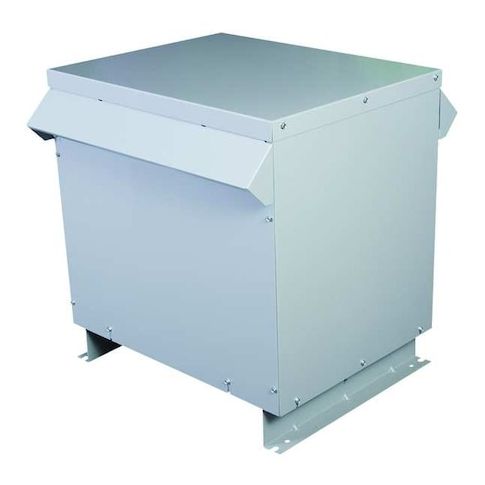

The ACME ELECTRIC T3075K0013BSF is a 75 kVA low voltage distribution transformer designed for 3 phase, 60 Hz step-down power applications. It converts 480V AC input to 120/208V AC output and is built for outdoor installation with a ventilated steel enclosure, NEMA 3R and IP14 ratings, and an included weathershield. This floor-mounted unit features aluminum windings, an electrostatic shield, and a durable gray powder polyurethane finish, making it well suited for commercial and industrial power distribution systems.
Key Features:
- - 75 kVA low voltage distribution transformer for commercial and industrial power distribution applications.
- - 3 phase, 60 Hz operation with step-down voltage conversion from 480V AC input to 120/208V AC output.
- - Primary voltage rated at 480D V.
- - Constructed with aluminum windings and an electrostatic shield for added performance and protection.
- - Ventilated steel enclosure with gray powder polyurethane paint finish for durability.
- - NEMA 3R and IP14 enclosure ratings for outdoor use.
- - Includes weathershield for additional environmental protection.
- - Floor-mounted design for stable installation.
- - 115°C temperature rise and 180°C UL insulation class.
- - Sound level rated at 50 dB.
- - ANFC taps: 2
- BNFC taps: 4
- tap step: 0.025.
- - Overall dimensions: 29.41 in. H x 28.15 in. W x 22.37 in. D.
- - Meets CSA C22.2 No. 47, UL 1561, and U.S. DOE 10 CFR Part 431 requirements.
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 110 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 22.37
- Package Width: 28.15
- Package Height: 29.41
- Package Weight: 600.00
