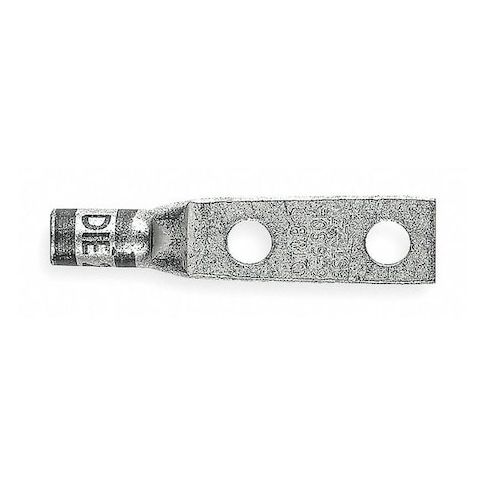

Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Red MPN:54215
Two-Hole Compression Lug, 350 kcmil Max, 3/8 in Stud, Short Barrel, Copper, Red
This two-hole compression lug is designed for use with stranded copper wire up to 350 kcmil and features a 3/8 inch stud. The short barrel design and straight tongue angle make it ideal for a variety of applications, including high-voltage connections in industrial settings. The copper construction and tin finish ensure reliable and long-lasting performance. UL listed and available in red, this lug is a versatile solution for electrical engineers and contractors. It can be used in a range of applications, from power distribution to transmission lines, and is suitable for use in environments up to 35 kV.
Top product features:
- Two-Hole Compression Lug provides a crimp termination style for secure electrical connections.
- The product features a straight barrel design for easy handling and installation.
- The lug has an inspection hole for verifying proper wire insertion.
Top product applications:
- High-Voltage Power Distribution Systems
- Industrial Electrical Panel Connectors
- Large-Size Electrical Wire Harnesses
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 71, Tongue Angle Straight, Tongue Width 1.36 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Maximum 350 kcmil, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Standards UL Listed, Number of Holes 2, Barrel Outside Diameter 0.93 in, Connector Type Straight Barrel, Contact Finish Tin, For Wire Type Stranded
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 4.00
- Package Height: 3.10
- Package Weight: 2.83
Product info last updated on February 9, 2026 12:30pm UTC
Category: Electrical Connectors
