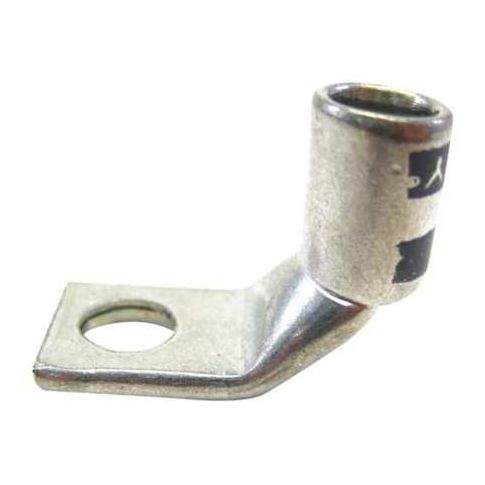

One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Gray MPN:54106UB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3738341
One-Hole Compression Lug, 4 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Gray
The One-Hole Compression Lug from ABB is a reliable and efficient solution for connecting copper conductors up to 4 AWG to 1/4 inch studs. Its standard barrel design and 90-degree angled tongue ensure secure and easy installation. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, this lug is suitable for a wide range of applications, including electrical panels, motor control centers, and power distribution systems. Its CSA certification and UL E9809 listing ensure compliance with industry standards, making it a trusted choice for electrical professionals.
Top product features:
- One-Hole Compression Lug has a 90 Degrees Angled Tongue for easy wire installation.
- The lug is designed for use with stranded copper wire up to 4 AWG for secure connections.
- The product has an inspection hole for visual verification of wire connections.
Top product applications:
- Industrial electrical wiring and circuit connections
- Automotive electrical systems and wiring harnesses
- Heavy-duty equipment and machinery electrical connections
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 29, Tongue Angle 90 Degrees Angled, Tongue Width 0.09 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.359 in, Connector Type Angled Barrel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.02
Product info last updated on January 31, 2026 10:20am UTC
Category: Electrical Connectors
