One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue MPN:54105UB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3721952

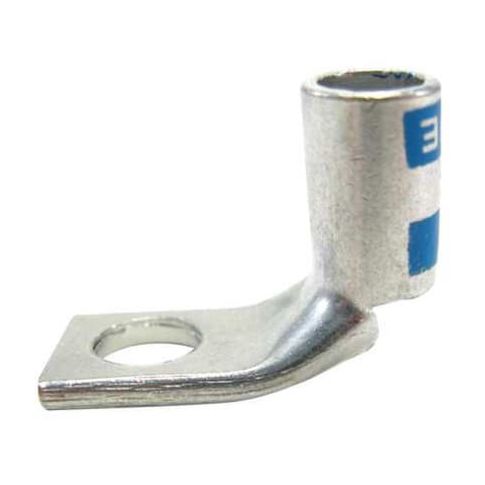

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue
The ABB One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors in a wide range of applications. With a maximum operating temperature of 194°F and a maximum voltage of 35 kV, this lug is suitable for use in high-performance electrical systems. Its 90-degree angled tongue and standard barrel size make it easy to install and secure, while the inspection hole provides a convenient check on the lug's condition. Ideal for use in industrial, commercial, and residential settings, this lug is a great choice for electrical contractors and engineers.
Top product features:
- Angled barrel design for easy installation
- Maximum operating temperature of 194 degrees F for reliable performance in high-temperature applications
- Accepts stranded copper wire up to 6 AWG for versatility in wire connections
Top product applications:
- Industrial electrical panel wiring
- Commercial electrical distribution systems
- Automotive wiring harness connections
Compression Lug, Barrel Size Standard, Color Code Blue, Die Code 24, Tongue Angle 90 Degrees Angled, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.281 in, Connector Type Angled Barrel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.70
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on January 29, 2026 6:49am UTC
Category: Electrical Connectors
