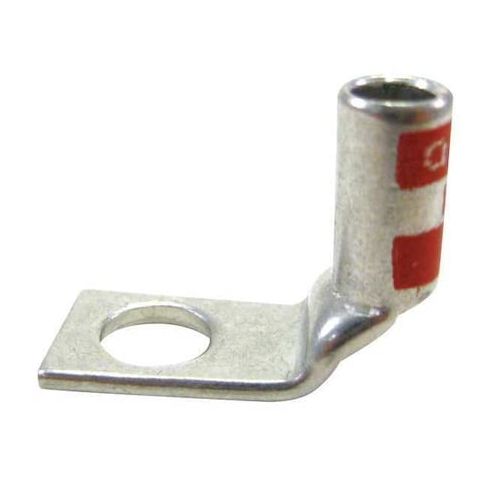

One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Short Barrel, Copper, Red MPN:54130UB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3689725
One-Hole Compression Lug, 8 AWG Max, 1/4 in Stud, Short Barrel, Copper, Red
Elevate your electrical connections with the ABB One-Hole Compression Lug, designed for maximum reliability and efficiency. Suitable for copper conductors up to 8 AWG, this lug features a 1/4 in stud and 90-degree angled tongue for secure connections. Its compact design and red color coding make it easy to identify and install. With a maximum operating temperature of 194°F and 35kV voltage rating, this lug is perfect for use in a variety of applications, including industrial control panels, power distribution systems, and electrical enclosures. Its CSA certification and UL E9809 compliance ensure top-notch quality and performance.
Top product features:
- Has a 90-degree angled tongue for easy conductor insertion
- Can accommodate stranded copper wire up to 8 AWG
- Features a short barrel design for compact installation
Top product applications:
- Electrical Panel Installation
- Busbar Connections
- Power Distribution Systems
Compression Lug, Barrel Size Standard, Color Code Red, Die Code 21, Tongue Angle 90 Degrees Angled, Tongue Width 0.06 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 8 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.25 in, Connector Type Angled Barrel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.80
- Package Height: 0.40
- Package Weight: 0.01
Product info last updated on February 9, 2026 11:19pm UTC
Category: Electrical Connectors
