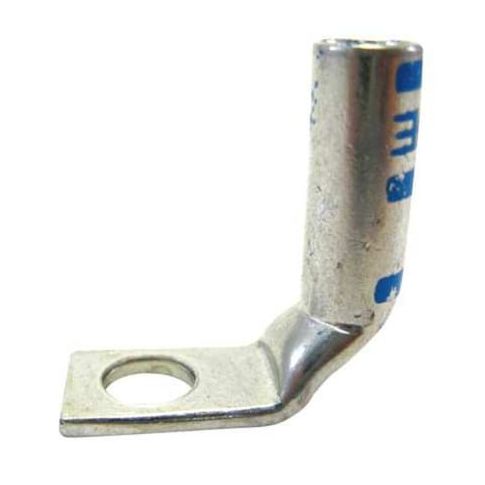

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue MPN:54905BEUB
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3655757
One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Short Barrel, Copper, Blue
This one-hole compression lug is designed for use with 6 AWG maximum copper conductors and a 1/4 inch stud, ideal for applications in the electrical and industrial sectors. The lug features a short barrel, angled tongue, and tin finish for secure connections. With a maximum operating temperature of 194°F and voltage rating of 35 kV, it meets CSA and UL standards for reliability and safety. Suitable for use in a variety of applications, including power distribution, industrial control, and electrical panel assemblies, this lug provides a reliable and efficient connection solution.
Top product features:
- One-Hole Compression Lug that can be used with stranded copper wire up to 6 AWG.
- The lug has a 90-degree angled tongue for easy connection.
- The lug is designed for use with a 1/4 inch stud.
Top product applications:
- Wire harness assembly
- Industrial electrical connections
- Automotive electrical systems
Compression Lug, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle 90 Degrees Angled, Tongue Width 0.44 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole No, Hole Center to Center Not Applicable, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.297 in, Connector Type Angled Barrel, Contact Finish Tin
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 0.40
- Package Weight: 0.02
Product info last updated on January 22, 2026 4:12am UTC
Category: Electrical Connectors
