One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue MPN:54905BEPH
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3642676

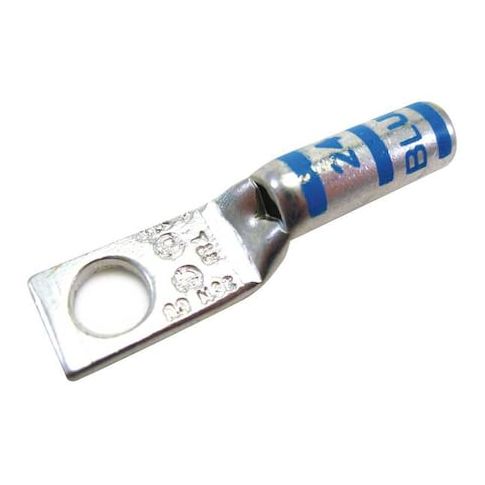

One-Hole Compression Lug, 6 AWG Max, 1/4 in Stud, Long Barrel, Copper, Blue
This One-Hole Compression Lug is a reliable and efficient solution for connecting copper conductors up to 6 AWG. Its long barrel design provides a secure grip on the conductor, while the straight tongue angle and 0.8 inch width ensure easy termination. The lug is CSA certified and meets UL E9809 standards, making it suitable for a variety of applications, including industrial and commercial electrical systems. Its compact size and lightweight design make it easy to handle and install, reducing labor costs and increasing productivity. Ideal for use in high-voltage applications up to 35 kV AC.
Top product features:
- One-Hole Lug Compression Connector allows for secure connection of stranded copper wire up to 6 AWG.
- The lug has a long barrel design for easy wire installation.
- The connector features a straight tongue angle for straightforward wire insertion.
Top product applications:
- Electrical Panel Wiring
- Industrial Automation Systems
- Medium Voltage Power Distribution
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.8 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Voltage 35 kV AC, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.296 in, Connector Type Straight Barrel, Contact Finish Tin, For Wire Size 6 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.60
- Package Width: 0.50
- Package Height: 0.40
- Package Weight: 0.00
Product info last updated on January 29, 2026 3:07am UTC
Category: Electrical Connectors
