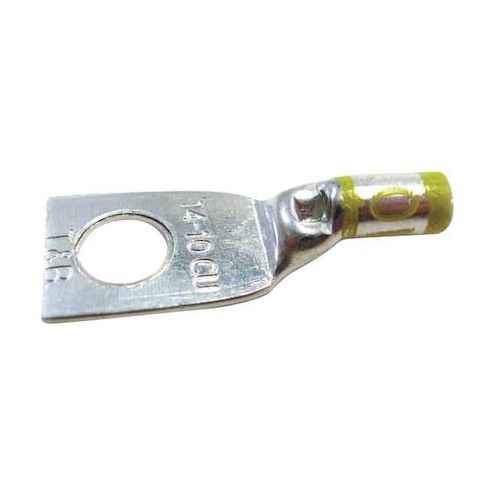

One-Hole Compression Lug, 10 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Yellow MPN:54101
One-Hole Compression Lug, 10 AWG Max, 1/4 in Stud, Standard Barrel, Copper, Yellow
This One-Hole Compression Lug is a reliable and efficient solution for connecting and insulating copper conductors in various electrical applications. Its standard barrel design and straight tongue angle ensure secure and easy installation, while its yellow color coding facilitates quick identification. With a maximum voltage rating of 35 kV AC and CSA certification, this lug is suitable for use in a range of industries, including industrial automation, renewable energy, and commercial electrical systems. Its compact size and lightweight design make it ideal for use in tight spaces and in applications where weight is a concern.
Top product features:
- One-Hole Lug Compression Connector has a straight barrel design.
- The product is designed for use with stranded copper wire, with a minimum size of 14 AWG and a maximum size of 10 AWG.
- The connector has an inspection hole for easy verification.
Top product applications:
- Electrical Panel Installation
- Automotive Wiring Harnesses
- Industrial Control Systems
One-Hole Lug Compression Connector, Barrel Size Standard, Color Code Yellow, Die Code -, Tongue Angle Straight, Tongue Width 0.5 in, For Conductor Material Copper, For Stud Size 1/4 in, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 10 AWG, Inspection Hole Yes, Hole Center to Center Not Applicable, Material Copper, Maximum Voltage 35 kV AC, Standards CSA Certified, UL E9809, Number of Holes 1, Barrel Outside Diameter 0.2 in, Connector Type Straight Barrel
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.50
- Package Width: 0.60
- Package Height: 0.30
- Package Weight: 0.02
Product info last updated on February 6, 2026 11:53pm UTC
Category: Electrical Connectors
