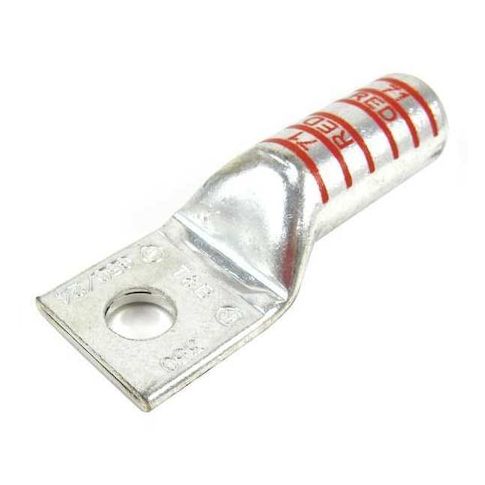

One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Long Barrel, Aluminum, Red MPN:60156
One-Hole Compression Lug, 250 kcmil Max, 1/2 in Stud, Long Barrel, Aluminum, Red
The ABB One-Hole Compression Lug is a reliable and efficient connector for aluminum conductors. Designed for use in a variety of applications, including electrical distribution and transmission systems, this lug features a long barrel and straight tongue angle for easy installation. With a maximum voltage rating of 35 kV AC, it provides a secure and safe connection. The lug's aluminum construction and tin contact finish ensure high-quality performance and durability. Suitable for stranded aluminum wire sizes up to 250 kcmil, this connector is a versatile solution for demanding electrical applications.
Top product features:
- Compression lug is designed for crimp termination of stranded aluminum wire up to 250 kcmil.
- Long barrel design provides a secure grip on conductors.
- Tin contact finish ensures high reliability and corrosion resistance.
Top product applications:
- High-voltage electrical distribution systems for transmission lines
- Heavy-duty industrial electrical connections for aluminum conductors
- Substation electrical connections for high-power transmission lines
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Red, Die Code 71, Tongue Angle Straight, Tongue Width 1.29 in, For Conductor Material Aluminum, For Stud Size 1/2 in, Inspection Hole No, Hole Center to Center Not Applicable, Material Aluminum, Maximum Voltage 35 kV AC, Termination Style Crimp, Standards UL Listed, Number of Holes 1, Barrel Outside Diameter 0.917 in, Connector Type Straight Barrel, Contact Finish Tin, For Stranded Aluminum Wire Size - Maximum 250 kcmil
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.10
- Package Width: 1.30
- Package Height: 0.90
- Package Weight: 0.14
Product info last updated on January 13, 2026 12:32pm UTC
Category: Electrical Connectors
