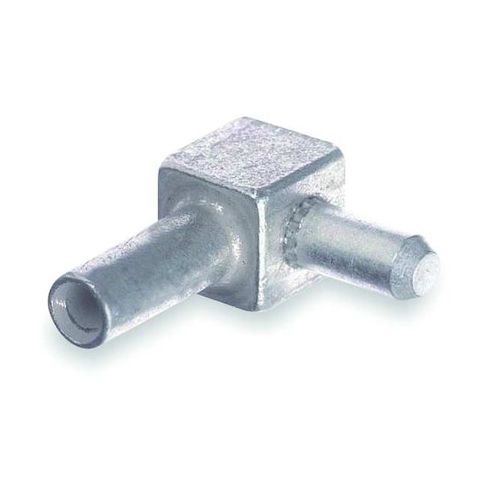

Motor L-Disconnect, Male, 4 AWG, Gray MPN:MD4M-2
Motor L-Disconnect, Male, 4 AWG, Gray
The ABB Motor L-Disconnect is a reliable and efficient solution for safely disconnecting and reconnecting motors in industrial applications. With a maximum voltage of 600V and temperature rating of 194°F, this disconnect is suitable for a wide range of motor sizes and types. Its compact design and pigtail termination style make it easy to install and connect to motor leads. The disconnect's high-quality copper construction ensures durable performance and long lifespan. Ideal for use in manufacturing, oil and gas, and other industries where motor maintenance is critical, this disconnect provides peace of mind and helps prevent electrical shock and equipment damage.
Top product features:
- Disconnects motor leads for safety and maintenance
- Has a maximum temperature rating of 194 degrees F to prevent overheating
- Supports up to 600 V to handle high voltage applications
Top product applications:
- Motor control applications, such as starting and stopping motors
- Industrial electrical distribution systems, including motor control centers and switchgear
- Heavy equipment and machinery, including cranes, hoists, and pumps
Motor Lead Disconnect, Body Size 2, Color Code Gray, Die Code 29, Gender Male, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 4 AWG, Maximum Wire Size 4 AWG, Termination Style Pigtail, Finish Tin Plated, Standards UL E9809, Compatible Grainger Part Number 3LT12, 3LT13, 3LT16, 4XMR7, Compatible Manufacturer Model Number TBM45S, TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S, Connection Orientation Pigtail, Connector Type Pigtail Connector
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.10
- Package Width: 1.00
- Package Height: 0.50
- Package Weight: 0.07
Product info last updated on January 13, 2026 12:26pm UTC
Category: Electrical Connectors
