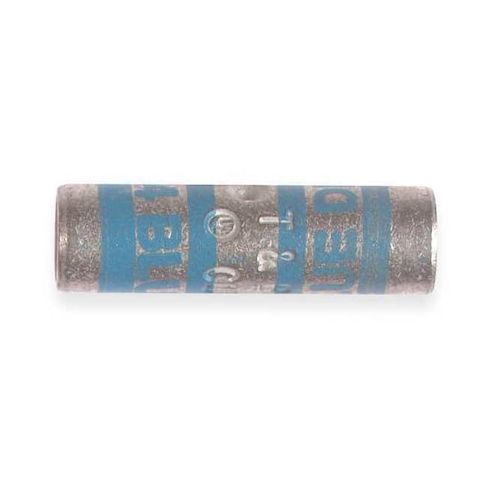

Splice Wire Connector, 400 kcmil Max, Blue, None Insulation, 35 kV MPN:54516
Splice Wire Connector, 400 kcmil Max, Blue, None Insulation, 35 kV
The ABB Splice Wire Connector is a reliable and efficient solution for connecting Class G, H, I, K, and M conductors. Its open barrel design and tin-plated finish ensure a secure and durable connection. With a maximum voltage rating of 35 kV and a maximum conductor size of 400 kcmil, this connector is suitable for a wide range of applications, including commercial and industrial electrical systems. Its compact size and seamless design make it easy to install and use, reducing downtime and increasing productivity. Ideal for use in high-voltage systems, the ABB Splice Wire Connector is a trusted choice for professionals.
Top product features:
- Open Barrel Splice allows for a secure connection between two conductors.
- Tin-plated barrel finish provides corrosion resistance and a long-lasting connection.
- Die Code 76 indicates the connector is suitable for use with Class G, H, I, K, and M conductors.
Top product applications:
- Wire splicing in electrical distribution systems
- Cable splicing in high-voltage applications
- Connecting conductors in heavy-duty industrial equipment
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Standard, Color Code Blue, Die Code 76, For Conductor Material Copper, For Wire Type Class G, H, I, K, M, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 400 kcmil, Number of Crimps 2, Overall Length 2.75 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.93 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.80
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.20
Product info last updated on January 13, 2026 12:23pm UTC
Category: Electrical Connectors
