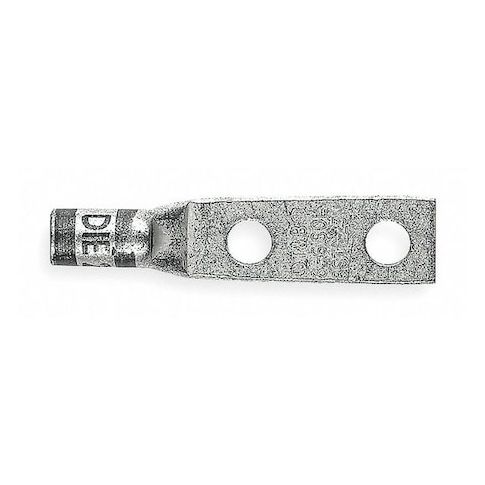

Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Orange MPN:54265
Two-Hole Compression Lug, 3/0 AWG Max, 1/2 in Stud, Standard Barrel, Copper, Orange
The ABB Two-Hole Compression Lug is a reliable and efficient connector solution for electrical applications. Designed for use with copper conductors, this lug features a standard barrel size and a straight tongue angle, making it easy to install and secure. With a maximum voltage rating of 35 kV, it's suitable for a wide range of applications, including industrial and commercial electrical systems. Its compact size and lightweight design make it easy to integrate into existing systems, while its high-quality materials ensure a long-lasting and reliable connection. Ideal for use in new construction or retrofit projects.
Top product features:
- Two-Hole Compression Lug provides a crimp termination style for secure connection to stranded copper wire
- Has a straight tongue angle for easy installation
- Can accommodate wire sizes up to 3/0 AWG for flexibility in application
Top product applications:
- Outdoor electrical installations
- Industrial electrical connections
- Low-voltage electrical distribution systems
Compression Lug, Barrel Size Standard, Color Code Orange, Die Code 50, Tongue Angle Straight, Tongue Width 0.94 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 3/0 AWG, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Standards UL Listed, Number of Holes 2, Barrel Outside Diameter 0.63 in, Connector Type Straight Barrel, Contact Finish Tin, For Wire Size 150 AWG
Additional Information
- Country of Origin: MX
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 15 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 0.90
- Package Height: 0.70
- Package Weight: 0.10
Product info last updated on March 28, 2026 10:30am UTC
Category: Electrical Connectors
