Crimp Wire Connector, 2 AWG Max, Pink, None Insulation, 35 kV MPN:60516

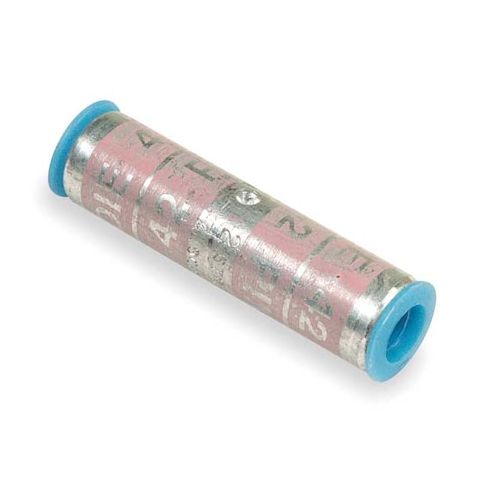

Crimp Wire Connector, 2 AWG Max, Pink, None Insulation, 35 kV
This ABB Crimp Wire Connector is a reliable and efficient solution for connecting stranded aluminum conductors in high-voltage applications. With a maximum voltage rating of 35 kV, it's ideal for use in electrical systems that require a secure and durable connection. The connector's open barrel splice design and tin-plated finish ensure excellent conductivity and corrosion resistance. Suitable for use in a variety of industries, including industrial automation, renewable energy, and power distribution, this connector offers a reliable and cost-effective solution for connecting wires in applications where high voltage and current are present.
Top product features:
- Crimp Wire Connector provides a secure connection for stranded conductors up to 2 AWG.
- Tin-plated barrel finish ensures reliable corrosion resistance and conductivity.
- Seamless barrel design allows for smooth, efficient wire insertion and crimping.
Top product applications:
- Wire harness assembly for industrial equipment
- Automotive electrical wiring and connectors
- High-voltage electrical distribution systems
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Pink, Die Code 42, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 2 AWG, Number of Crimps 2, Overall Length 1.81 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.51 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 0.50
- Package Height: 0.50
- Package Weight: 0.10
Product info last updated on February 19, 2026 1:55am UTC
Category: Electrical Connectors
