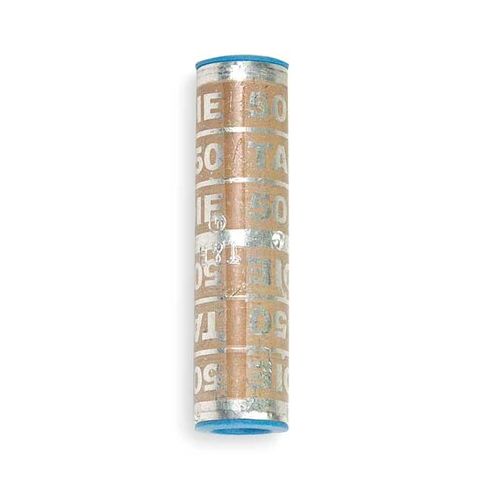

Crimp Wire Connector, 1/0 AWG Max, Tan, None Insulation, 35 kV MPN:60530
Crimp Wire Connector, 1/0 AWG Max, Tan, None Insulation, 35 kV
This ABB Crimp Wire Connector is a reliable solution for electrical connections in high-voltage applications. With a maximum operating temperature of 194°F and a voltage rating of 35 kV, it can withstand harsh conditions. Suitable for aluminum, copper, and stranded conductors, it features a long-barrel design for easy access and a seamless seam for added strength. The connector is CSA certified and UL listed, ensuring compliance with industry standards. Ideal for use in industrial settings, such as power distribution and transmission lines, the ABB Crimp Wire Connector provides a secure and efficient connection.
Top product features:
- Long-Barrel Splice for conductor material aluminum and copper wire
- Crimps stranded wire up to 1/0 AWG
- Tin-plated barrel for corrosion resistance
Top product applications:
- Electrical panel installation
- High-voltage transmission line connections
- Heavy-duty industrial machinery wiring
Long-Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Tan, Die Code 50, For Conductor Material Aluminum, Copper, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size 1/0 AWG, Maximum Wire Size 1/0 AWG, Number of Crimps 2, Overall Length 2.38 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.62 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 8.00
- Package Width: 5.00
- Package Height: 2.00
- Package Weight: 1.00
Product info last updated on February 1, 2026 3:33am UTC
Category: Electrical Connectors
