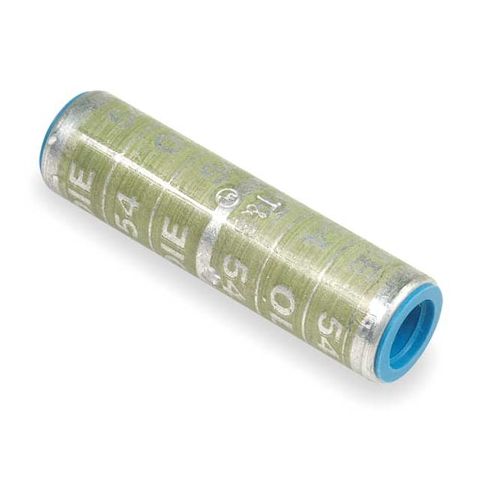

Crimp Wire Connector, 2/0 AWG Max, Olive, None Insulation, 35 kV MPN:60536
Crimp Wire Connector, 2/0 AWG Max, Olive, None Insulation, 35 kV
The ABB Crimp Wire Connector is a reliable solution for high-voltage applications, with a maximum voltage rating of 35 kV. Suitable for use with aluminum stranded conductors, this connector features a long barrel size and olive color code for easy identification. With a maximum operating temperature of 194°F, it can withstand demanding conditions. CSA certified and UL listed, this connector meets industry standards for safety and performance. Ideal for use in electrical distribution systems, the ABB Crimp Wire Connector provides secure connections and reliable performance, making it a valuable addition to any electrical installation.
Top product features:
- Crimp Wire Connector securely attaches stranded wire conductors
- Tin-plated barrel finish provides corrosion resistance
- Seamless barrel construction allows for smooth wire insertion
Top product applications:
- High voltage electrical connections for outdoor or industrial applications
- Electrical panel construction and wiring
- Heavy-duty wiring and cabling for machinery and equipment
Open Barrel Splice, Barrel Finish Tin Plated, Barrel Size Long, Color Code Olive, Die Code 54, For Conductor Material Aluminum, For Wire Type Stranded, Material Copper, Maximum Voltage 35 kV, Minimum Wire Size Not Applicable, Maximum Wire Size 2/0 AWG, Number of Crimps 2, Overall Length 2.5 in, Maximum Conductors 1, Maximum Operating Temperature 194 Degrees F, RoHS Compliant Yes, Seam Style Seamless, Standards CSA Certified, UL Listed, Barrel Outside Diameter 0.7 in
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.25
- Package Width: 2.75
- Package Height: 2.25
- Package Weight: 0.40
Product info last updated on January 15, 2026 12:53am UTC
Category: Electrical Connectors
