80/20® 40 Series Single Tab End Fastener with M8 Screw 40-3389
80/20® 40 Series Single Tab End Fastener with M8 Screw

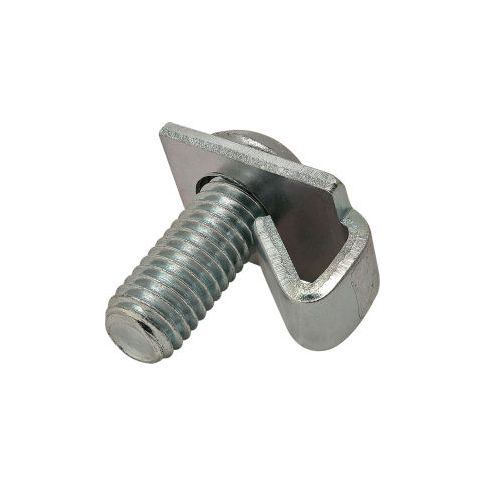

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed 90 degree moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head.
Additional Information
- Brand: 80/20 Inc
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 0.92
- Package Width: 0.62
- Package Height: 1.15
- Package Weight: 0.04
Product info last updated on April 6, 2026 8:49pm UTC
Category: Structural Framing
