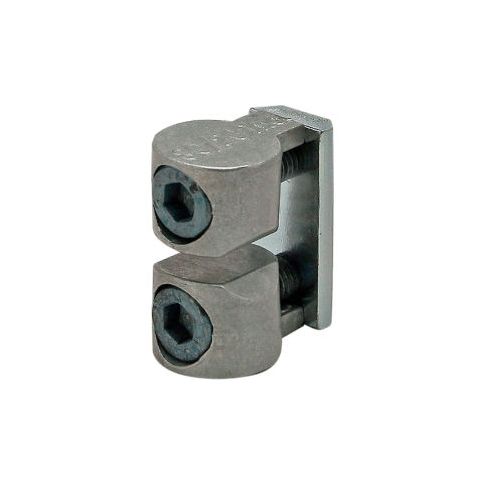

80/20® 25 Series M5 Double Anchor T-Nut Short Assembly Bright 25-3094

The double anchor fastener assembly is comprised of two socket head cap screws two cams and a double t-nut. This design doubles the contact between the fastener and mating profile making an extremely strong connection. The fastener provides infinite positioning along the mating profile's t-slot allowing a large degree of adjustability. The double anchor fastener provides 90 degree flush vibration resistant connections especially convenient where space restrictions apply and is used for profiles with open t -slots opposite each other. 80/20 recommends the double anchor fastener for non-column loaded supports to add extra strength. This connection method requires a counterbore machining service on the mounting profile. Additional information cams are available separately for instances where you want to create your own custom assembly.
