80/20® 25 Series Single Tab End Fastener w/ M6 Screw Bright 25-3383
80/20® 25 Series Single Tab End Fastener w/ M6 Screw Bright

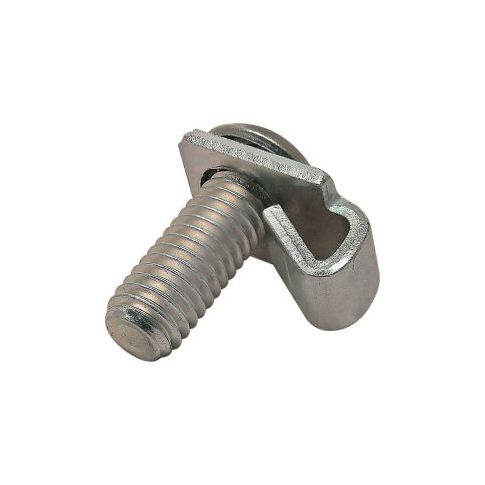

The single tab end fastener assembly is comprised of a button head socket cap screw and a single tab wing clip. The single tab end fastener provides a fixed 90 degree moderate-strength connection that is completely hidden. The single winged tab is used for radius and angled profiles; the winged tab prevents the mating profile from rotating while the straight end is flush with the mounting profile. This connection method requires two machining services; an end tap on the mounting profile and an access hole in the mating profile in order to reach the screw head. Additional information wing clips are available separately (without the button head socket cap screw) for instances where you want to create your own custom assembly.
Additional Information
- Brand: 80/20 Inc
- Package Quantity: 1
- Country of Origin: CN
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 0.65
- Package Width: 0.43
- Package Height: 0.76
- Package Weight: 0.01
Product info last updated on April 24, 2026 7:26pm UTC
Category: Structural Framing
