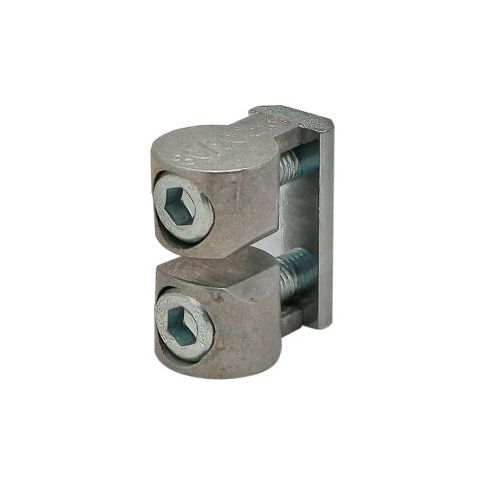

80/20® 10 Series M5 Double Anchor T-Nut Short 3094
80/20® 10 Series M5 Double Anchor T-Nut Short
The 80/20 10 Series M5 Double Anchor T-Nut Short 3094 is a robust fastening solution for applications where strength and adjustability are crucial. This double anchor design provides a 90-degree flush, vibration-resistant connection, ideal for profiles with open t-slots opposite each other. Its infinite positioning capability allows for a large degree of adjustability, making it perfect for non-column loaded supports. The fastener assembly includes two socket head cap screws, two cams, and a double T-nut, ensuring a secure connection. Suitable for use in various industries, this product is particularly convenient in applications where space restrictions apply.
Top product features:
- Doubles the contact between the fastener and mating profile making an extremely strong connection.
- Provides infinite positioning along the mating profile's t-slot allowing a large degree of adjustability.
- Offers 90 degree flush vibration resistant connections especially convenient where space restrictions apply.
Top product applications:
- Space-restricted enclosures
- Non-column loaded supports
- Machine tool builds
The double anchor fastener assembly is comprised of two socket head cap screws two cams and a double t-nut. This design doubles the contact between the fastener and mating profile making an extremely strong connection. The fastener provides infinite positioning along the mating profile's t-slot allowing a large degree of adjustability. The double anchor fastener provides 90 degree flush vibration resistant connections especially convenient where space restrictions apply and is used for profiles with open t -slots opposite each other. 80/20 recommends the double anchor fastener for non-column loaded supports to add extra strength. This connection method requires a counterbore machining service on the mounting profile. Additional information cams are available separately for instances where you want to create your own custom assembly.
Additional Information
- Brand: 80/20 Inc
- Package Quantity: 1
- Country of Origin: US
- FOB Origin: JA
- Ships by: PARCEL
- Comes in a kit: No
- Newly added to catalog: No
- Item is on Clearance: No
- Contains Hazardous Materials: No
- CA Proposition 65 Applies: No
- Package Length: 1.44
- Package Width: 0.56
- Package Height: 0.99
- Package Weight: 0.24
Product info last updated on April 14, 2026 9:32am UTC
Category: Structural Framing
