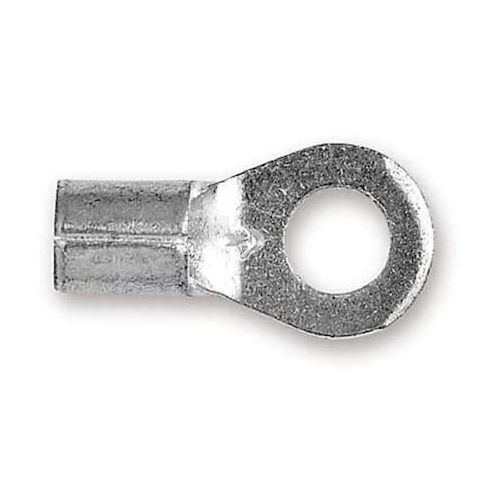

Ring Terminal, 5/16 in Stud Size, 6 AWG, 1, 000 V, Bare Insulated, Bare, Crimp Termination Only MPN:M6-516RK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G8705076
Ring Terminal, 5/16 in Stud Size, 6 AWG, 1, 000 V, Bare Insulated, Bare, Crimp Termination Only
This 3M Ring Terminal is a reliable and durable solution for crimping 6 AWG building wire, fixtures, luminaires, and signs. Its bare insulated design provides excellent electrical conductivity and withstanding temperatures up to 347°F. The ring terminal's CSA certification and UL listing ensure compliance with industry standards. Its compact size and braized barrel style make it ideal for use in tight spaces. With a maximum voltage of 1,000V, this terminal is suitable for a wide range of applications, including residential and commercial electrical installations. Its compact size and high-temperature resistance make it a valuable addition to any electrical toolkit.
Top product features:
- Crimps onto wire for secure termination
- Tin-coated copper contact for reliable connections
- Brazed barrel design for added durability
Top product applications:
- Building Wire
- Fixtures or Luminaires
- Signs
Ring Terminal, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 6 AWG, Maximum Wire Size 6 AWG, Termination Style Crimp, Tongue Width 0.63 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.25 in, Barrel Length 0.39 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.40
Product info last updated on April 25, 2026 8:11pm UTC
Category: Electrical Connectors
