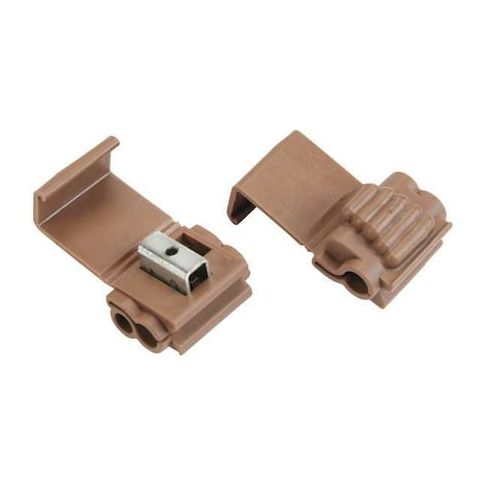

Insulation-Displacement Wire Connector, 10 AWG Max, 2 Port, Brown, Polypropylene Insulation, 600 V MPN:902
Insulation-Displacement Wire Connector, 10 AWG Max, 2 Port, Brown, Polypropylene Insulation, 600 V
Easily connect and terminate wires in dry environments with the 3M Insulation-Displacement Wire Connector. This reliable connector features a polypropylene insulation material and brass contacts, ensuring a secure and durable connection. With a maximum voltage of 600V and a temperature rating of 221°F, it's suitable for a variety of applications, including electrical panels, control boxes, and wiring harnesses. The connector's insulation-displacement design allows for easy installation and minimizes the risk of wire damage. Available in a brown color, it's CSA certified and UL listed for added assurance. Perfect for use in dry environments, it's a convenient and reliable solution for electrical connections.
Top product features:
- Insulation-Displacement Wire Connector allows for quick and easy connection of wires without stripping insulation.
- The connector is rated for use in dry environments and can withstand temperatures up to 221 Degrees F.
- The connector is suitable for applications requiring a maximum voltage of 600 V.
Top product applications:
- Dry Environment
- CSA Certified
- UL Listed
Insulation Displacement Connector, Color Brown, Connector Type Single U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.145 in, Maximum Temperature 221 Degrees F, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 10 AWG, Minimum Tap Wire Size 18 AWG, Maximum Tap Wire Size 10 AWG, Maximum Voltage 600 V, Number of Ports 2, Contact Finish Tin, Contact Material Brass, Fill Material No Fill, Standards CSA Certified, UL Listed, Application Dry Environment
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 7.30
Product info last updated on January 15, 2026 8:25am UTC
Category: Electrical Connectors
