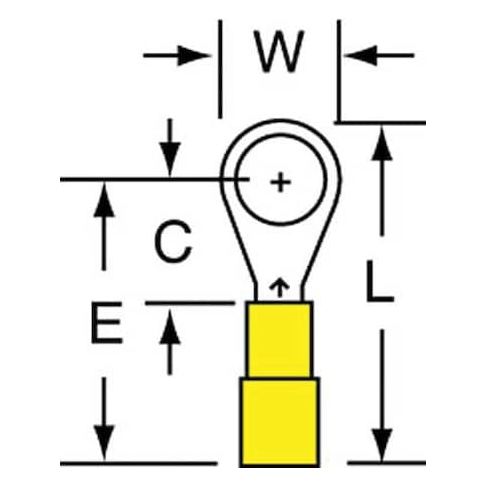

Ring Terminal, #6 Stud Size, 24 AWG, 1, 000 V, Nylon Insulated, Yellow, Crimp Termination Only MPN:MN24-6RK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5796183
Ring Terminal, #6 Stud Size, 24 AWG, 1, 000 V, Nylon Insulated, Yellow, Crimp Termination Only
The 3M Ring Terminal is a reliable and versatile electrical connector designed for use in various applications, including building wire, fixtures, luminaires, and signs. Its nylon insulation provides excellent durability and resistance to heat, with a maximum temperature rating of 221°F. The terminal can withstand up to 1,000V and is compatible with wire sizes from 26 to 24 AWG. Its crimp termination style ensures secure connections, while its CSA certification and UL listing guarantee compliance with industry standards. With its compact design and easy installation, the 3M Ring Terminal is an ideal choice for electrical contractors and professionals.
Top product features:
- Nylon insulation provides electrical isolation and protects against short circuits
- The crimp termination style allows for secure and reliable connections to wire
- The terminal is rated for a maximum voltage of 1,000 V, ensuring safe and reliable operation in high-voltage applications
Top product applications:
- Building Wire
- Fixtures or Luminaires
- Signs
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 26 AWG, Maximum Wire Size 24 AWG, Termination Style Crimp, Tongue Width 0.2 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.03 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs, Hole Spacing 0.21 in
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 4.20
- Package Width: 3.20
- Package Height: 3.10
- Package Weight: 0.70
Product info last updated on January 15, 2026 8:24am UTC
Category: Electrical Connectors
