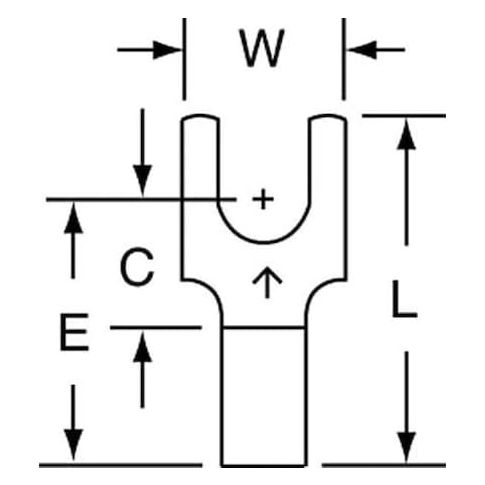

Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Bare Insulated, Blue, Crimp Termination Only, 1000 PK MPN:M14-8FBK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5775201
Fork Terminal, #8 Stud Size, 14 AWG, 600 V, Bare Insulated, Blue, Crimp Termination Only, 1000 PK
The 3M Fork Terminal is a reliable and efficient solution for electrical connections. Suitable for use in a variety of applications, including industrial control panels, motor starters, and circuit breakers, this terminal features a crimp termination style and is designed for 14 AWG wire. The fork terminal's maximum operating temperature of 347°F and voltage rating of 600V make it ideal for high-temperature environments. With a RoHS compliant design and CSA certification, this terminal meets industry standards for safety and quality. Its compact size and ease of use make it a valuable addition to any electrical installation.
Top product features:
- Fork terminals provide a crimp termination method for secure connections.
- The terminals have a tin contact finish for reliable conductivity.
- The terminals are made of copper for high electrical conductivity.
Top product applications:
- Heavy Equipment Wiring
- Automotive Wiring
- Industrial Control Panel Wiring
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #8, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.25 in, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 16 AWG, Overall Length 0.65 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.70
Product info last updated on January 15, 2026 8:24am UTC
Category: Electrical Connectors
