Two Hole Lug Connector, 250 kcmil, PK10 MPN:31149
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5729613
Two Hole Lug Connector, 250 kcmil, PK10
Elevate your electrical connections with 3M's Two-Hole Compression Lug, designed for maximum reliability and efficiency. Suitable for copper conductors up to 250 kcmil, this lug features a long barrel and straight tongue angle for secure crimping. With a maximum voltage rating of 35 kV, it's ideal for a variety of applications, including commercial and industrial electrical systems. The lug's seamless design and CSA certification ensure high-quality performance. Perfect for use in harsh environments, this lug provides a reliable connection that withstands the demands of heavy-duty electrical systems.
Top product features:
- Two-Hole Compression Lug design allows for secure connection of two conductors.
- The lug features a long barrel for accommodating larger conductor sizes.
- The lug is made of copper for excellent electrical conductivity and durability.
Top product applications:
- Electrical Panel Building
- High-Voltage Power Distribution Systems
- Low-Voltage Power Distribution Systems

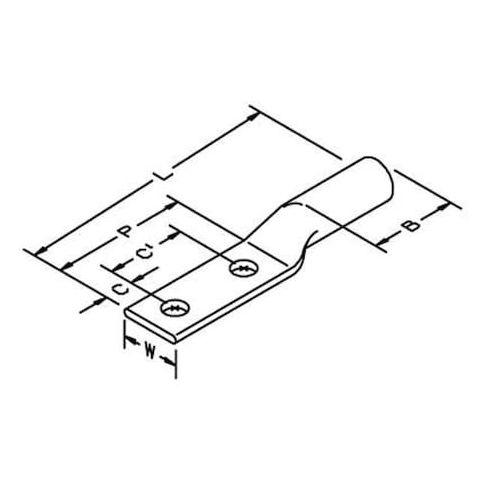

Compression Lugs, Barrel Size Long, Color Code Yellow, Die Code 16, Tongue Angle Straight, Tongue Width 1.13 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole No, Hole Center to Center 1.75 in, Material Copper, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed, Number of Holes 2, RoHS Compliant Yes, Barrel Inside Diameter 0.59 in, Barrel Outside Diameter 0.75 in
Additional Information
- Country of Origin: CL
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.70
Product info last updated on January 15, 2026 8:22am UTC
Category: Electrical Connectors
