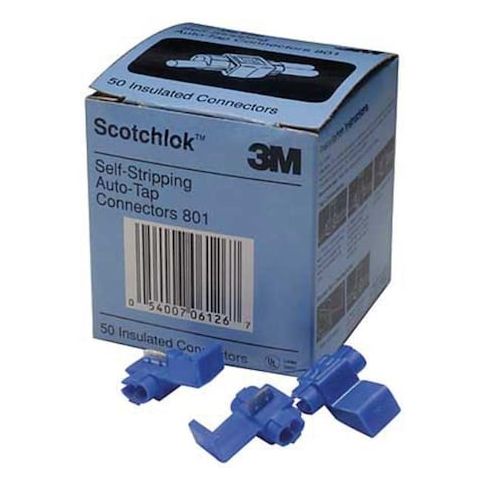

Insulation-Displacement Wire Connector, 14 AWG Max, 2 Port, Blue, Polypropylene Insulation, 600 V MPN:IDC801
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5704194
Insulation-Displacement Wire Connector, 14 AWG Max, 2 Port, Blue, Polypropylene Insulation, 600 V
The 3M Insulation-Displacement Wire Connector is a reliable and efficient solution for connecting wires in dry environments. With a maximum insulation diameter of 0.145 in and a maximum temperature of 194°F, this connector is suitable for a wide range of applications, including industrial and commercial settings. Its blue color and polypropylene insulation ensure a secure and durable connection. The connector is certified to CSA and UL standards, ensuring compliance with industry regulations. Its compact size and ease of use make it an ideal choice for applications where space is limited, such as in control panels and electrical enclosures.
Top product features:
- Insulation Displacement technology allows for quick and easy wire connection without stripping insulation
- Polypropylene insulation provides a high-temperature rating of up to 194 Degrees F
- UL 94 Flammability Rating V-2 ensures the product meets safety standards for dry environments
Top product applications:
- Dry Environment
- Wire Harness Assembly
- Electrical Panel Installation
Insulation Displacement Connector, Color Blue, Connector Type Single U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.145 in, Maximum Temperature 194 Degrees F, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 14 AWG, Minimum Tap Wire Size 18 AWG, Maximum Tap Wire Size 14 AWG, Maximum Voltage 600 V, Number of Ports 2, Fill Material No Fill, UL 94 Flammability Rating V-2, Standards CSA Certified, UL Listed, Application Dry Environment
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 17.40
Product info last updated on January 15, 2026 8:21am UTC
Category: Electrical Connectors
