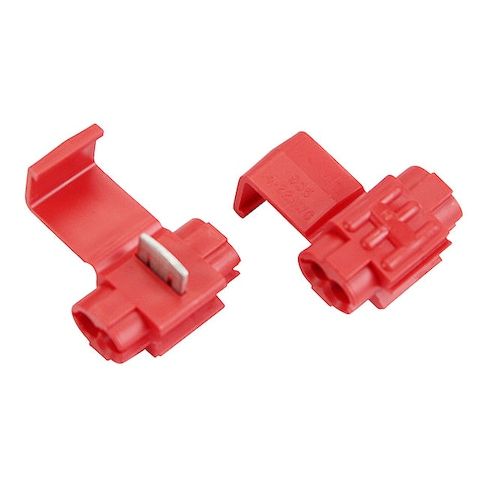

Insulation-Displacement Wire Connector, 14 AWG Max, 2 Port, Red, Polypropylene Insulation, 600 V MPN:905-BULK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5639261
Insulation-Displacement Wire Connector, 14 AWG Max, 2 Port, Red, Polypropylene Insulation, 600 V
Easily connect and terminate wires with the 3M Insulation-Displacement Wire Connector. This reliable connector is designed for use in a variety of applications, including electrical panels, control systems, and industrial equipment. With a maximum voltage of 600 V and a maximum temperature rating of 194°F, it can handle demanding environments. The connector's polypropylene insulation and tin finish ensure a secure and durable connection. Suitable for use with 14 AWG max wire and 2 ports, it's an ideal solution for applications where space is limited or multiple connections are needed.
Top product features:
- Insulation Displacement Connector allows for quick and easy connection of wires without stripping insulation.
- The connector has a maximum voltage rating of 600 V, providing a safe and reliable connection for high-voltage applications.
- The connector is designed for use with multiple wires, with a maximum of 2 wires allowed in a single run.
Top product applications:
- Wire Harness Construction
- Automotive Wiring
- Electrical Panel Assembly
Insulation Displacement Connector, Color Red, Connector Type Single U-Element, Insulation Material Polypropylene, Maximum Insulation Diameter 0.145 in, Maximum Temperature 194 Degrees F, Maximum Run Conductors 2, Maximum Run Wire Insulation Diameter 0.145 in, Minimum Run Wire Size 18 AWG, Maximum Run Wire Size 14 AWG, Maximum Tap Wire Insulation Diameter 0.145 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 18 AWG, Maximum Voltage 600 V, Number of Ports 2, Contact Finish Tin
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 12.20
- Package Width: 10.40
- Package Height: 17.20
- Package Weight: 18.20
