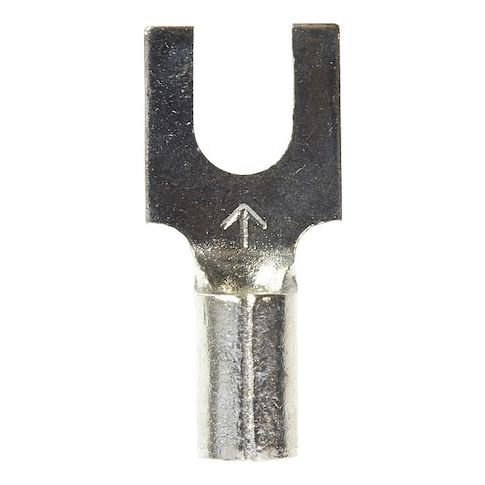

Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Blue, Crimp Termination Only, 1000 PK MPN:M14-6FBK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5595414
Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Blue, Crimp Termination Only, 1000 PK
For high-voltage applications, the 3M Fork Terminal is a reliable choice. Featuring a #6 stud size and 14 AWG rating, this terminal is designed for use in industrial settings where maximum voltage and operating temperature are a concern. The crimp termination style ensures a secure connection, while the bare insulated design allows for easy wire installation. Suitable for applications such as electrical panel construction and heavy-duty machinery assembly, these terminals offer a reliable and efficient solution for connecting wires in high-voltage systems. The RoHS compliant design ensures environmental responsibility and meets industry standards for safety and performance.
Top product features:
- Copper contact material provides reliable electrical conductivity
- Tin contact finish enhances corrosion resistance and durability
- Crimp termination style allows for secure and efficient wire connection
Top product applications:
- Automotive Wiring
- Electrical Panel Building
- Heavy Equipment Wiring
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #6, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.25 in, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 16 AWG, Overall Length 0.65 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.90
Product info last updated on January 15, 2026 8:34am UTC
Category: Electrical Connectors
