Ring Terminal, #4 Stud Size, 10 AWG, 1, 000 V, Nylon Insulated, Yellow, Crimp Termination Only MPN:MNG10-4R/SK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5523262
Ring Terminal, #4 Stud Size, 10 AWG, 1, 000 V, Nylon Insulated, Yellow, Crimp Termination Only
This 3M Ring Terminal features a #4 stud size and 10 AWG wire capacity, making it suitable for a variety of applications including electrical connections, motor control, and power distribution. The nylon insulation provides excellent durability and resistance to heat, with a maximum operating temperature of 221°F. The crimp termination style ensures a secure and reliable connection. The terminal is CSA certified and UL listed, meeting industry standards for safety and quality. Its compact design and yellow color make it easy to identify and install, making it an ideal choice for use in commercial and industrial settings.
Top product features:
- Nylon insulation provides electrical insulation and protects against electrical shock.
- Crimp termination allows for secure and reliable connection to a stud.
- Tin contact finish provides a durable and corrosion-resistant connection to the stud.
Top product applications:
- Wire Harness Assembly
- Electrical Panel Construction
- Automotive Wiring Systems

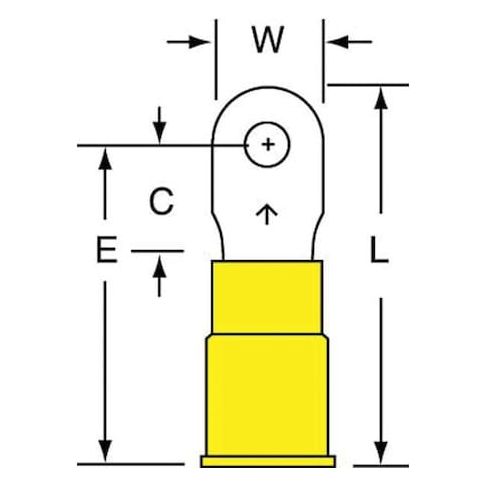

Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.28 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.14 in, Barrel Length 0.25 in, Barrel Style Butted
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 4 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.30
Product info last updated on January 14, 2026 2:44pm UTC
Category: Electrical Connectors
