Wire Disconnect, Brass, Blue, Nylon MPN:MNI14-250DFIK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5509621

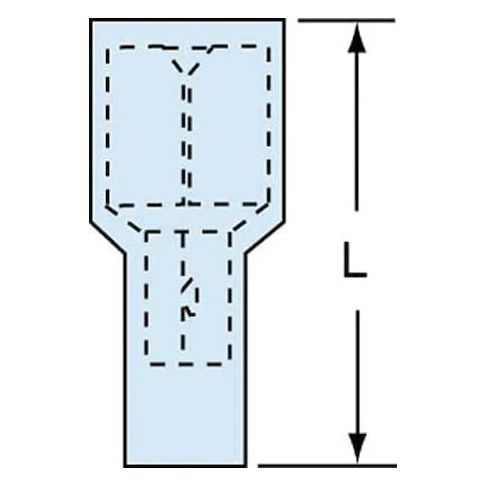

Wire Disconnect, Brass, Blue, Nylon
This 3M Female Disconnect is a reliable and durable electrical connector suitable for a wide range of applications, including industrial and commercial use. Its brass contact material and nylon insulation ensure high conductivity and resistance to heat and chemicals. The disconnect's full coverage insulation and crimp termination style provide secure connections and easy installation. With a maximum operating temperature of 221°F and a maximum voltage of 600V, it can handle demanding applications. Its CSA certification and UL listing guarantee compliance with industry standards. Ideal for use in electrical panels, machines, and equipment, this disconnect offers long-lasting performance and reliability.
Top product features:
- Tin contact finish for corrosion resistance
- Crimped termination style for secure wire connection
- Full coverage nylon insulation for electrical isolation
Top product applications:
- Automotive Wiring Harnesses
- Electrical Panel Building
- Industrial Control Systems
Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.076 in, Barrel Outside Diameter 0.145 in
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1000
- Unit of Measure: EA
- Package Length: 5.50
- Package Width: 5.40
- Package Height: 4.90
- Package Weight: 3.10
Product info last updated on January 15, 2026 8:18am UTC
Category: Electrical Connectors
