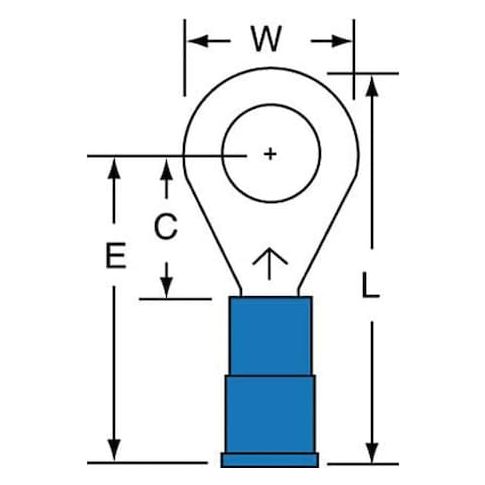

Ring Terminal, 1/4 in Stud Size, 14 AWG, 1, 000 V, Nylon Insulated, Blue, Crimp Termination Only MPN:MNG14-14R/SK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G5497195
Ring Terminal, 1/4 in Stud Size, 14 AWG, 1, 000 V, Nylon Insulated, Blue, Crimp Termination Only
This 1/4 in stud size ring terminal is designed for reliable connections in high-voltage applications. Made with 14 AWG copper wire and nylon insulation, it provides excellent electrical conductivity and resistance to heat and chemicals. The terminal's crimp termination ensures a secure connection, while its partial coverage nylon insulation offers flexibility and durability. Suitable for use in a variety of industries, including automotive, aerospace, and industrial manufacturing, this ring terminal is ideal for applications where high voltage and temperature resistance are required, such as in electrical panels, battery connections, and harness assembly.
Top product features:
- Nylon insulation provides electrical isolation and protection
- Crimp termination allows for secure and reliable connections
- Tin contact finish enhances conductivity and corrosion resistance
Top product applications:
- Automotive Electrical Systems
- Industrial Control Panels
- Aerospace Electrical Wiring
Ring Terminal, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.09 in, Barrel Length 0.25 in, Barrel Style Butted
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 5.50
- Package Width: 5.20
- Package Height: 4.80
- Package Weight: 3.40
Product info last updated on January 15, 2026 8:17am UTC
Category: Electrical Connectors
