Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Heat Shrink Insulated, Blue, Crimp Termination Only MPN:MH14-8R/LK
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4147005
Ring Terminal, #8 Stud Size, 14 AWG, 600 V, Heat Shrink Insulated, Blue, Crimp Termination Only
This 3M Ring Terminal is a high-quality electrical connector suitable for a variety of applications, including automotive, marine, and industrial uses. Its heat shrink insulation provides excellent electrical and environmental protection, while its crimp termination ensures a secure and reliable connection. The terminal's copper contact and tin finish ensure excellent conductivity and corrosion resistance. With a maximum voltage rating of 1,000 V and a temperature range of -40 to 221°F, this terminal is ideal for use in a wide range of electrical systems, including those in harsh environments. It's available in a pack of 250 units.
Top product features:
- Heat shrink insulated to protect against electrical shock
- Crimp termination for secure wire connection
- Tin contact finish for corrosion resistance
Top product applications:
- Automotive wiring harness
- Electrical panel assembly
- Marine electrical system

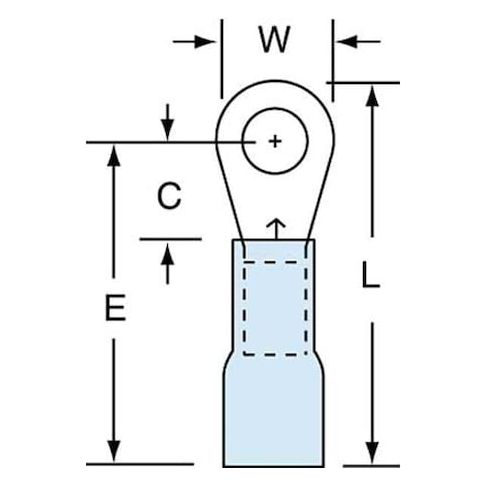

Ring Terminal, Insulation Color Blue, Insulation Material Heat Shrink, Maximum Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.31 in, Contact Finish Tin, Contact Material Copper, Standards EU Compliant, Barrel Inside Diameter 0.09 in, Barrel Length 0.25 in, Barrel Size Standard, Barrel Style Brazed, Insulation Type Heat Shrink, Overall Length 1 in, Package Quantity 250
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.50
Product info last updated on April 7, 2026 8:06pm UTC
Category: Electrical Connectors
