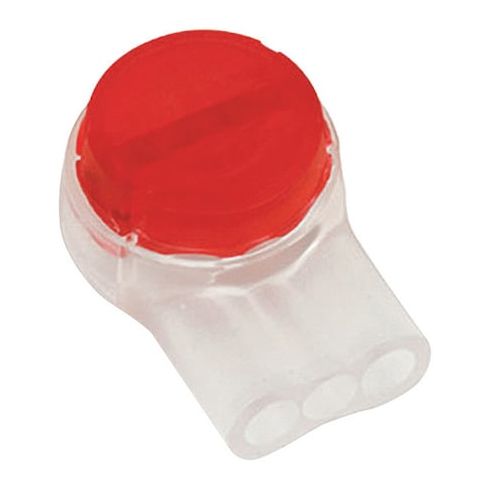

Insulation-Displacement Wire Connector, 19 AWG Max, 3 Port, Red, Polypropylene Insulation, 600 V MPN:80611327596
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G3158924
Insulation-Displacement Wire Connector, 19 AWG Max, 3 Port, Red, Polypropylene Insulation, 600 V
Easily connect and insulate wires with the 3M Insulation-Displacement Wire Connector. This reliable connector is designed for use in a variety of applications, including electrical systems, automation, and industrial control panels. Its insulation-displacement technology eliminates the need for stripping or crimping, saving time and reducing the risk of errors. The connector's polypropylene insulation ensures high-temperature resistance and durability, while its 600V rating makes it suitable for use in a range of applications. With a maximum wire size of 19 AWG and a compact design, this connector is ideal for use in tight spaces and high-density installations.
Top product features:
- Insulation-Displacement technology allows for quick and easy wire connection without stripping or tinning.
- The connector can handle up to three conductors in a single run.
- The product can operate at voltages up to 600 V.
Top product applications:
- Wire harness assembly
- Automotive wiring repair
- Electrical panel building
Insulation Displacement Connector, Color Red, Connector Type Butt Splice, Insulation Material Polypropylene, Maximum Insulation Diameter 0.083 in, Maximum Operating Temperature 140 Degrees F, Maximum Run Conductors 3, Maximum Run Wire Insulation Diameter 0.04 in, Minimum Run Wire Size 26 AWG, Maximum Run Wire Size 19 AWG, Maximum Tap Conductors 3, Maximum Tap Wire Insulation Diameter 0.082 in, Minimum Tap Wire Size 26 AWG, Maximum Tap Wire Size 19 AWG, Maximum Voltage 600 V, Number of Ports 3
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 2.60
- Package Width: 2.60
- Package Height: 3.00
- Package Weight: 0.25
Product info last updated on February 9, 2026 5:57am UTC
Category: Electrical Connectors
