Insulation-Displacement Wire Connector, 16 AWG Max, 3 Port, Black, White, Nylon Insulation, 600 V MPN:316-IR BAG
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2911465

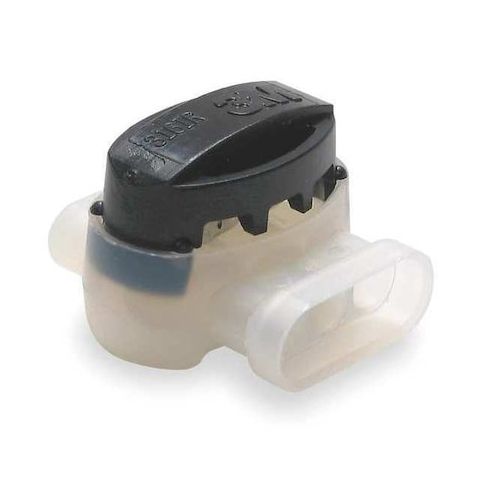

Insulation-Displacement Wire Connector, 16 AWG Max, 3 Port, Black, White, Nylon Insulation, 600 V
The 3M Insulation-Displacement Wire Connector is a reliable and efficient solution for connecting wires in a variety of applications. With a maximum operating temperature of 221°F and a maximum voltage of 600V, this connector is suitable for use in high-temperature and high-voltage environments. Its 3-port design allows for easy connections and disconnections, making it ideal for use in electrical panels, control systems, and other applications where multiple wires need to be connected. The nylon insulation and brass contacts provide a durable and long-lasting connection, reducing the risk of electrical shock and ensuring a safe and reliable operation.
Top product features:
- Insulation displacement technology allows for quick and easy wire connection without stripping or cutting the wire.
- The connector has three ports, enabling multiple wires to be connected simultaneously.
- The connector is rated for 600V, making it suitable for a variety of electrical applications.
Top product applications:
- House Wiring
- Industrial Automation
- Electrical Panel Assembly
Insulation Displacement Connector, Color Black, White, Connector Type Pigtail, Insulation Material Nylon, Maximum Insulation Diameter 0.155 in, Maximum Operating Temperature 221 Degrees F, Maximum Run Wire Insulation Diameter 0.155 in, Minimum Run Wire Size 22 AWG, Maximum Run Wire Size 16 AWG, Maximum Tap Wire Insulation Diameter 0.155 in, Minimum Tap Wire Size 22 AWG, Maximum Tap Wire Size 16 AWG, Maximum Voltage 600 V, Number of Ports 3, Contact Finish Tin, Contact Material Brass
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: PK
- Package Length: 6.50
- Package Width: 4.50
- Package Height: 1.00
- Package Weight: 0.27
Product info last updated on January 13, 2026 1:17pm UTC
Category: Electrical Connectors
