Splice Kit, 4/0 AWG Max, Black, Epoxy Insulation, 10, 000 V MPN:90-B1N
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G2561903
Splice Kit, 4/0 AWG Max, Black, Epoxy Insulation, 10, 000 V

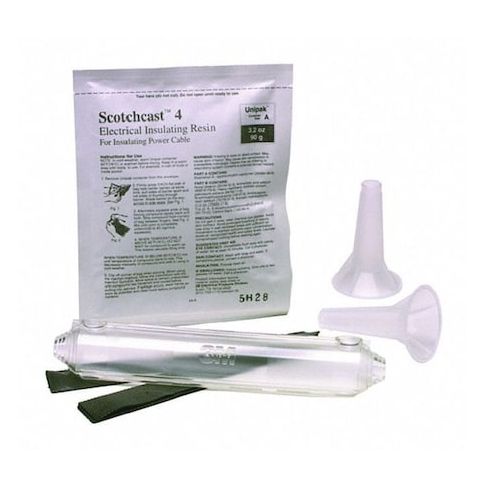

The 3M Resin Compound Splice Kit is a reliable and efficient solution for splicing power cables up to 4/0 AWG. With a maximum operating temperature of 194°F and a voltage rating of 10,000V, this kit is designed for heavy-duty applications. The epoxy insulation provides a durable and long-lasting seal, while the electrical tape and pouring spout make the splicing process easy and mess-free. Suitable for use in a variety of industries, including electrical, construction, and manufacturing, this kit is ideal for splicing cables in high-voltage systems, industrial equipment, and heavy machinery.
Top product features:
- Epoxy insulation for electrical protection
- Maximum operating temperature of 194 degrees F for reliability in high-temperature applications
- Compatible with power cables up to 0.81 in OD for versatility in cable splicing
Top product applications:
- Wire repair and maintenance in industrial settings
- Power cable splicing in electrical installations
- High-voltage cable termination in electrical distribution systems
Resin Compound Splice Kit, Body Material Epoxy, Color Black, Compatible with Product Type Power Cables, For Maximum Cable OD 0.81 in, Includes Electrical Tape, Mold Body, Pouring Spout, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 10,000 V, Minimum Wire Size 1/0 AWG, Maximum Wire Size 4/0 AWG, Resin Material Resin 4N, RoHS Compliant Yes, Termination Style Splice
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 9.50
- Package Width: 6.30
- Package Height: 2.60
- Package Weight: 0.85
- California Prop 65 Warning: WARNING: Cancer - www.P65Warnings.ca.gov
Product info last updated on January 13, 2026 11:54am UTC
Category: Electrical Connectors
